16Mb 2.7-3.6V SPI Serial Flash
Overview
Alternate products
Compare Products
(2)
- Density (Organization):16 Mbit
- Operating Voltage Min. (V):2.7
- Oper Voltage Max (V):3.6
- Max. Clock Freq.:50 MHz
- Page Size (bytes):0
- Write Protected:False
- Write Protect Scheme:Quarter, Half, Whole Array
- Endurance:100,000
- Data Retention (Years):100
- Bus Modes:SPI
- Battery Backup:False
- Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
- Up to 50 MHz Clock Frequency
- Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention
- Low Power Consumption:– Active Read Current: 10 mA (typical)– Standby Current: 5 µA (typical)
- Flexible Erase Capability– Uniform 4 KByte sectors– Uniform 32 KByte overlay blocks– Uniform 64 KByte overlay blocks
- Fast Erase and Byte-Program:– Chip-Erase Time: 35 ms (typical)– Sector-/Block-Erase Time: 18 ms (typical)– Byte-Program Time: 7 µs (typical)
- Auto Address Increment (AAI) Programming– Decrease total chip programming time overByte-Program operations
- End-of-Write Detection– Software polling the BUSY bit in Status Register– Busy Status readout on SO pin in AAI Mode
- Hold Pin (HOLD#)– Suspends a serial sequence to the memorywithout deselecting the device
- Write Protection (WP#)– Enables/Disables the Lock-Down function of thestatus register
- Software Write Protection– Write protection through Block-Protection bits instatus register
- Temperature Range– Commercial: 0°C to +70°C– Industrial: -40°C to +85°C

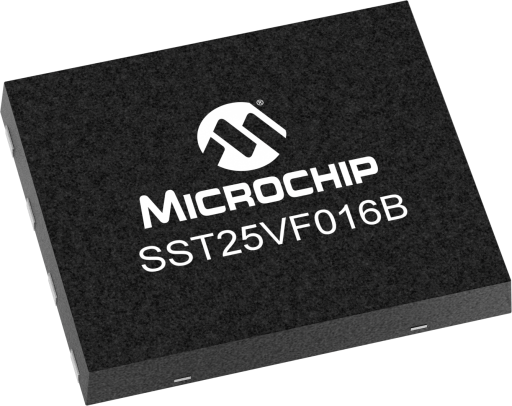

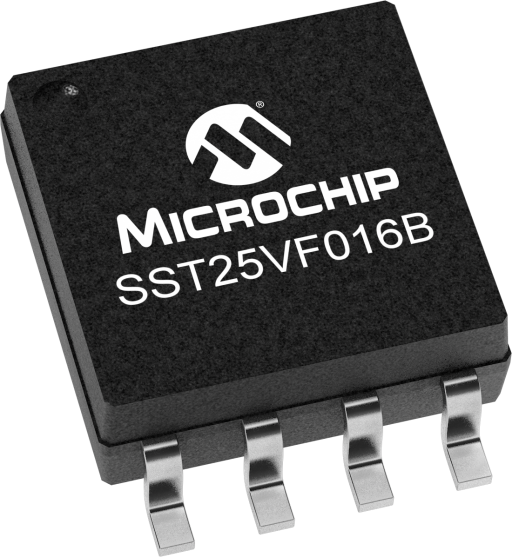

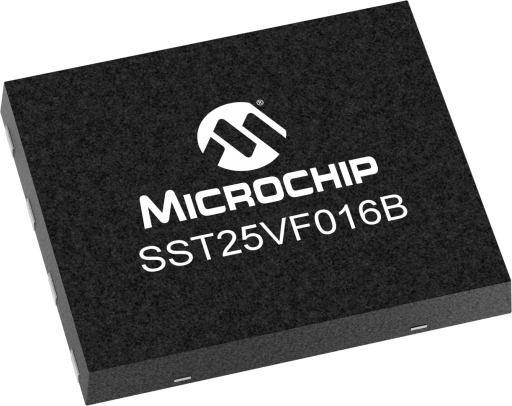

- Packages Available– 8-lead SOIC (200 mils)– 8-contact WSON (6mm x 5mm)
- All non-Pb (lead-free) devices are RoHS compliant
SST's 25 series Serial Flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B devices are enhanced with improved operating frequency which lowers power consumption. SST25VF016B SPI serial flash memories are manufactured with SST's proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
For Migration Document to SST26VF016B, click here.
