ARM9-based Microprocessor with 512Mbit DDR2
Overview
- CPU:ARM926
- CPU Speed Max MHz (megahertz):600
- RAM KB (kilobyte):64
- Internal DRAM MB (megabyte):64
- Int. DRAM Type:DDR2
- NAND Interface:Yes
- Graphic LCD Interface:RGB
- Graphics Controller/GPU:2D GPU
- Camera Interface:Parallel
- QSPI:1
- U(S)ART:13
- SPI:6
- I2C:13
- I2S:1
- 10/100 Ethernet MAC:2
- USB Interface:2 HS Host, 1 HS Host/Device
- CAN:2
- Type of CAN module:CAN
- SDIO/SD-CARD/eMMC:2
- Class D Amplifier Outputs:Yes
- ADC Channels:12
- ADC Resolution b (bits):12
- Crypto Engine:Yes
- Secure Bootloader:Yes
- Anti-Tampering Inputs:8
- Secure Key Storage (bits):11 KByte OTP
- TempRange Min:-40
- TempRange Max:85
- I/O Pins Max:112
- Pincount:233
- Packages:TFBGA
- High-performance Architecture:
- 600MHz ARM926EJ-S Core, 200MHz System/Memory Bus
- 32 kB Data Cache and 32kB Instruction Cache
- Memories:
- 512Mbit integrated DDR2, 16-bit databus
- 64 kB internal SRAM
- Enhanced User Interface capability:
- 24-bit LCD Controller with overlays up to 1024x768 resolution
- 2D Graphics Engine, Camera Interface
- Built-in Class D Amplifier
- Large number of connectivity options:
- Dual 10/100 Ethernet, Dual CAN, Dual SD Card/eMMC
- Two High-speed USB Host + One High-speed Host or Device
- Thirteen FLEXCOMs (USART, SPI and I²C)
- State-of-the-Art Security:
- Hardware Encryption Engine (TDES, AES and SHA) and True Random Generator (TRNG)
- Secure Boot with on-chip Secure Key Storage (OTP)
- Physical protection against tamper, 8 tamper detection pins
- On the Fly scrambling / unscrambling for memories
- Rich Development Ecosystem:
- Free mainline Linux® Distribution
- MPLAB® X Integrated Development Environment and MPLAB® Harmony v3
- Multiple Third-party Software and Hardware Solutions
- Optimized for Easy PCB Design and Low EMI:
- TFBGA233, 14x14, 0.8 mm pitch
- Power/GND balls placed and distributed for optimal decoupling
- Fractional System PLL, I/Os slew rate and drive control, DDR I/Os calibration for Low EMI

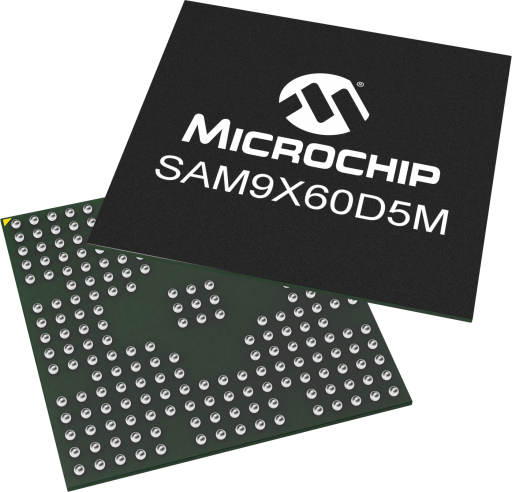

The SAM9X60D5M is a high-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with 512Mbit integrated DDR2 memory. The SAM9X60D5M supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. The device integrates powerful peripherals for connectivity and user interface applications. It offers State-of-the-Art security functions such as Secure Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES) as well as tamper pins.
Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X60D5M power sequencing specifications. Go to Treelinktool under DC/DC converters, SAM9X60 and DDR2 for further information.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| The linux4samwebsite provides access to Microchip's Linux software and tool developments for our MPUs.
|
| Tools |
|---|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| Tools |
|---|
| The SAM9X60 Curiosity Development Board is based on the SAM9X60D1G SiP high-performance, low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running at 600MHz.
|
| The SAM-BA software tool supports in-system programming of Microchip ARM-based MCUs and MPUs.
|
| The SAM9X60-EK Evaluation Kit is ideal for evaluating and prototyping with the high performance, ultra-low power SAM9X60 ARM926EJ-S based microprocessor (MPU) running up to 600 MHz.
|
| The High-Performance WVGA LCD Display Module with maXTouch Technology (AC320005-5) is designed for evaluating the Microchip's graphics display solution and graphics library for 32-bit microcontrollers and microprocessors. This 5-inch display is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation kits. This board has a TFT 800 x 480 display with a 24-bit parallel RGB interface with a maXTouch technology capacitive touch interface.
|
| Tools |
|---|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
