MIPS32® M-Class MCU With Wi-Fi Connectivity and 2 MB Memory for Software Development
Overview
- Wi-Fi Spec:802.11 b/g/n
- CPU:200 MHz, MIPS32 M-Class Microprocessor
- GPIO:60
- Flash (KB):2048
- SRAM (KB):640
- I2C:2
- SPI:2
- UART:3
- ADC Channels:20
- Frequency Range:2.4
- RX Current Consumption (mA):162
- TX Output Power (dBm):20.5
- TX Current Consumption (mA):284
- Power Down Mode Current Consumption (uA):1.06
- Operating Temp (°C) Min:-40
- Operating Temp (°C) Max:85
- Operating Voltage (V) Min:2.97
- Operating Voltage (V) Max:3.63
- SoftAP Client Count:8
- Wi-Fi Security:WPA, WPA2, WPA3, WEP, Enterprise
- Encryption:TRNG, ECC, ECDH, ECDSA, Ed25519, AES, SHA
- Packages:132\VQFN
- MCU Features:
- 200 MHz, MIPS32 M-Class microprocessor core
- 2 MB embedded flash, 512 KB SRAM (program and data), 128 KB data buffer
- 20 CVD touch input
- 3 x UART, 2 x I2C, 2 x SPI, SQI
- 62 GPIOs
- High performance peripheral set including full-speed USB, CAN, CAN-FD, 10/100 MAC and high accuracy 12-bit dual ADC with 20 channels
- Wi-Fi and Network Features:
- Single-band 2.4 GHz b/g/n
- Compatible with Wi-Fi 6/7 2.4 GHz band
- WPA/WPA2/WPA3 Personal, TLS, SSL security protocols
- Support for AP, STA, SoftAP
- Optional full featured hardware crypto accelerator
- U.FL connector antenna
- Other Features:
- Package: 132-pin DQFN, 10 x 10 mm
- Operating voltage: 3.0 to 3.6 V
- Operating temp: -40 to +85 ºC

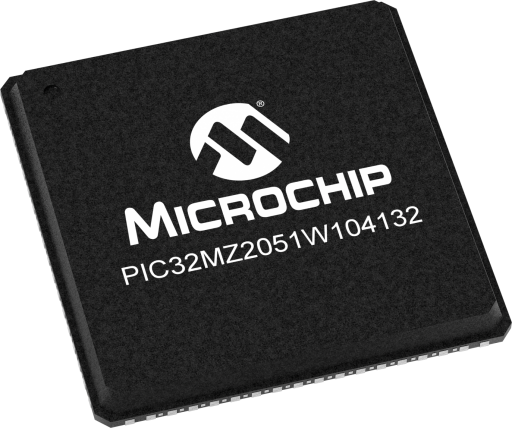

PIC32MZ2051W104132 is a high-performance, Wi-Fi MCU SoC with a MIPS M-Class core, robust connectivity and 2 MB memory for software development.
Along with a powerful core, PIC32MZ2051-W1 provides advanced features that will help you to realize your application.
Industry-leading connectivity in a fully certified Wi-Fi MCU module supporting 2.4 GHz 802.11 b/g/n radio modes.
Best-in-class WLAN functions including:
- The latest Wi-Fi security standard, Wi-Fi Protected Access 3 (WPA3)
- All general Wi-Fi functions: AP, STA, SoftAP, TLS, WPA/WAP2, etc.
2 MB embedded flash and 512 KB SRAM, empowering embedded designers to build complex IoT software covering WLAN, TCP/IP stack, RTOS, cloud connectivity and application.
A rich set of peripherals including Ethernet, USB, ADC, CVD touch buttons and CAN.
Easy development using MPLAB® Harmony® v3 framework.
Our MCHPRT3 Radio Testing Tool simplifies the RF evaluation and testing of wireless designs during development, certification and production.
---
Total Network Solution
As a total system solution provider, we offer a range of products that simplify industrial IoT development. Our PIC32MZ2051-W1 pairs nicely with our other market-leading components, such as:
- KSZ8081 family of Ethernet PHYs
- MCP2542WFD family of CAN transceivers
- Other wireless technologies like Bluetooth® Low Energy (BLE) and 802.15.4 based-protocols
---
Related Products
To eliminate the need for RF expertise, consider a global regulatory certified module. We have four options based on the PIC32MZ2051W104132 SoC available:
- WFI32E03PC includes a built-in, PCB antenna and added cloud security
- WFI32E03PE includes a built-in, PCB antenna
- WFI32E03UC includes an external, U.FL antenna connector and added cloud security
- WFI32E03UE includes an external, U.FL antenna connector
