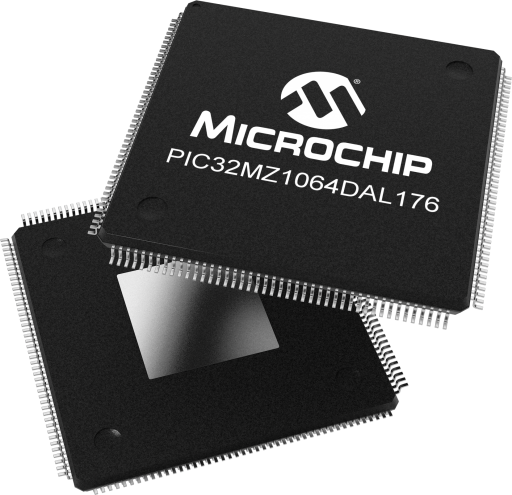

Overview
- Part Family:PIC32MZDA
- CPU Type:32-bit MIPS MCU
- MaxSpeed (MHz):200
- Program Memory Size (KB):1024
- SRAM (KB):640
- Temp. Range Min.:-40
- Temp. Range Max.:105
- Operation Voltage Min.(V):2.2
- Operation Voltage Max.(V):3.6
- SPI:6
- I2C:5
- UART:6
- QSPI:1
- Crypto Engine:Yes
- Internal Oscillator:8 MHz, 32 KHz
- Pin Count:169
- Secure Boot:No
- 200 MHz/330 DMIPS, MIPS32 microAptiv core
- Dual Panel Flash for live update support
- 12-bit, 18 MSPS, 45-channel ADC module
- Memory Management Unit for optimum embedded OS execution
- microMIPS mode for up to 35% code compression
- CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators
- SPI/I2S interfaces for audio processing and playback
- Hi-Speed USB Device/Host/OTG
- 10/100 Mbps Ethernet MAC with MII and RMII interface
- Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
- Advanced Memory Protection Peripheral and memory region access control
- Peripheral and memory region access control
- Temperature Range - 40°C to 85°C, - 40°C to 105°C
- Operating voltage range of 2.3V to 3.6V
- 1MB Flash memory (plus an additional 160 KB of Boot Flash)
- 640KB SRAM memory
- microMIPS mode for up to 35% smaller code size
- DSP-enhanced core: Four 64-bit accumulators Single-cylce MAC, saturating and fractional math IEEE 754-compliant
- Four 64-bit accumulators
- Single-cylce MAC, saturating and fractional math
- IEEE 754-compliant
- Code-efficient (C and Assembly) architecture
- Various power management options for extreme power reduction (VBAT, Deep Sleep, Sleep and Idle)
- Deep Sleep current: < 1µA (typical)
- Integrated POR and BOR
- Programmable High/Low-Voltage Detect (HLVD) on VDDIO and High-Voltage Detect (HVD) on VDDR1V8
- Programmable PLLs and oscillator clock sources
- Dedicated PLL for DDR2
- Fail-Safe Clock Monitor
- Independent Watchdog and Deadman Timers
- Fast wake-up and start-up
- 50 MHz SD/SDIO/eMMC bus interface
- 50 MHz External Bus Interface (EBI)
- 80 MHz Serial Quad Interface (SQI)
- Peripheral Pin Select (PPS) functionality to enable function remap
- Up to 8 channels of hardware DMA with automatic data size detection
- Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
- Two CAN modules 2.0B Active with DeviceNet addressing support
- Six 4-wire SPI modules (80 Mbps)
- SQI configurable as an additional SPI module (50 MHz)
- Five I2C modules (up to 1 Mbaud) with SMBus support
- Parallel Master Port (PMP)
- Hardware Real-Time Clock and Calendar (RTCC) module
- Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
- Nine Input Capture (IC) and Nine Output Compare(OC)/PWM outputs
- 3-layer Graphics Controller with up to 24-bit color support
- High-performance 2D Graphics Processing Unit (GPU)
- Audio data communication: I2S, LJ, RJ, USB
- Audio data control interface: SPI and I2C™
- Audio data master clock: Fractional clock frequencies with USB synchronization
- 12-bit ADC Module:
- 18Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
- Up to 45 analog inputs
- Can operate during sleep and idle modes
- Multiple trigger sources
- Six digital comparators and six digital filters
- Two comparators with 32 programmable voltage references
- Temperature sensor with ±2°C accuracy
- Charge Time Measurement Unit (CTMU)
- AEC-Q100 REVG (Grade 2 -40oC to +105oC) (Planned)
- Class B Safety Library, IEC 60730
- Back-up internal oscillator
- In-circuit and in-application programming
- 4-wire MIPS® Enhanced JTAG interface
- Unlimited program and 12 complex data breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Non-intrusive hardware-based instruction trace
- MPLAB Harmony – PIC32 software development framework
- C/C++ compiler with native DSP/fractional and FPU support
- TCP/IP, USB, Graphics, and mTouch middleware
- MFi, Android, and Bluetooth audio frameworks
- RTOS Kernels, Express Logic ThreadX FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
PIC32MZ DA series offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.
