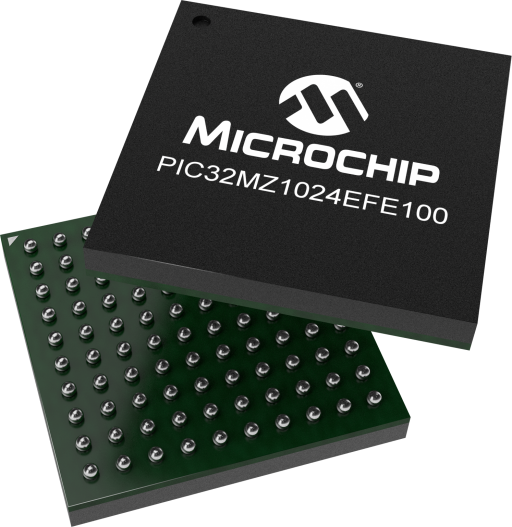

Overview
- Part Family:PIC32MZEF
- CPU Type:32-bit MIPS MCU
- MaxSpeed (MHz):200
- Program Memory Size (KB):1024
- SRAM (KB):256
- Temp. Range Min.:-40
- Temp. Range Max.:125
- Operation Voltage Min.(V):2.2
- Operation Voltage Max.(V):3.6
- SPI:6
- I2C:5
- UART:6
- QSPI:1
- Crypto Engine:No
- Internal Oscillator:8 MHz, 32 kHz
- Pin Count:100
- Secure Boot:No
- up to 250 MHz/415 DMIPS, MIPS Warrior M-class core
- • Single-cycle MAC, saturating and fractional math
- • IEEE 754-compliant
- • FPU for fast single and double-precision math
- • microMIPS mode for up to 35% code compression
- • AEC Q100 Grade1 rated (-40c to 125C)
- • Operating voltage range of 2.2V to 3.6V
- • Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
- Memories
- • Dual Panel Flash for live update support
- • Up to 2MB Flash memory (plus an additional 160 KB of Boot Flash)
- • Up to 512KB SRAM memory
- • 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
- Advanced Analog Features
- • 12-bit, 18 MSPS, 48-channel ADC module
- • Six digital comparators and six digital filters
- • Up to Two analog comparators with 32 programmable voltage references
- • 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)
- • Up to Nine Capture inputs and Nine Compare/PWM outputs
- Communication Interfaces
- • Hi-Speed USB 2.0 Device/Host/OTG
- • 10/100 Mbps Ethernet MAC with MII and RMII interface
- • 50 MHz Serial Quad Interface (SQI)
- • Peripheral Pin Select (PPS) functionality to enable function remap
- • Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
- • Two CAN modules 2.0B Active with DeviceNet addressing support
- • Six 4-wire SPI modules (50 Mbps)
- • SQI configurable as an additional SPI module (50 MHz)
- • Five I2C modules (up to 1 Mbaud) with SMBus support
- Audio/Graphics Support
- • Parallel Master Port (PMP)
- • 50 MHz External Bus Interface (EBI)
- • Audio data communication: I2S, LJ, RJ, USB
- • Audio data control interface: SPI and I2C™
- Software Support
- • MPLAB X Integrated Development Environment (IDE)
- • MPLAB® Harmony Integrated Software Framework
- • TCP/IP, USB, Graphics and mTouch middleware
- • RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
The PIC32MZ EF Family offers a high-performance MCU running up to 252 MHz with up to 2 MB Flash and 512 KB SRAM targeting connectivity applications in Industrial, automotive, IOT , Graphics(HMI) and Motor Control Market Segments.
PIC32MZ EF family has best-in-class peripheral set including I2 S/SPI; 8-/16-bit Parallel Master Port (PMP) and External Bus Interface (EBI); 48-channel, 12-bit Analog-to-Digital Converter (ADC); Hi-Speed USB 2.0-compliant Device/ Host/OTG; 10/100 Mbps Ethernet MAC; Serial Quad Interface (SQI) and Crypto Engine for encryption/decryption.
These devices are fully supported by the MPLAB® Harmony integrated software framework and AECQ-100 Grade1 (125C) qualified.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| Tools |
|---|
| The Curiosity PIC32MZ EF 2.0 Development Board provides the freedom to develop a variety of applications, including Bluetooth Audio, CAN, Graphics/UI, Internet of Things (IoT), robotics and proof-of-concept designs.
|
| The 565 LCD Adapter Graphics Card (AC320212) enables controllerless-based graphics for a large variety of Microchip starter kits. The 565 LCD Adapter Graphics Card is designed to allow the color space mapping to increase from the 16-bit output to the 24-bit input which is found on most of the displays.
|
| The Starter Kit I/O Expansion Board provides Starter Kit and Starter Board users with full access to MCU signals, additional debug headers, and connection of PICtail Plus daughter cards. MCU signals are available for attaching prototype circuits or monitoring signals with logic probes. Headers are provided for connecting JTAG tools or Microchip tools .
|
| This evaluation kit includes the PIC32MZ EF Family Starter Kit board, a PHY
daughter board, an Ethernet patch cord, and three USB cables (a Standard-A to
Micro-B and two Standard-A to Mini-B).
|
| This Plug-in module enables development using a PIC32 MCU with a Bluetooth Audio Development board. It features PIC32MZ2048EFH144-I/PH.
|
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| J-32 Debug Probe is a JTAG/ICSP Debugger that supports all of Microchip's 32-bit MCU and MPU products.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The Softlog SEC-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2 and ICP2(HC) progra |
