Low Cost 32-bit MCU w/eXtreme Low Power Modes
Overview
- Part Family:PIC32MM0064GPL036
- CPU Type:32-bit MIPS MCU
- MaxSpeed (MHz):25
- Program Memory Size (KB):16
- SRAM (KB):4
- Temp. Range Min.:-40
- Temp. Range Max.:125
- Operation Voltage Min.(V):2
- Operation Voltage Max.(V):3.6
- SPI:2
- I2C:0
- UART:2
- QSPI:0
- Crypto Engine:No
- Internal Oscillator:8 MHz, 32 kHz
- Pin Count:28
- Low-Power Operation
- 500 nA Sleep Current for RAM Retention mode
- 5 μA for Sleep with Regulator Standby mode
- 2 μA for lowest Sleep Mode with RTCC
- High-Performance 32-Bit RISC CPU
- 79 CoreMark performance at 25MHz operation
- microAptiv™ UC 32-Bit Core with 5-Stage Pipeline
- microMIPS™ Instruction Set for 35% Smaller Code and 98% Performance compared to MIPS32 Instructions
- Two Sets of 32 Core Register Files (32-bit) to Reduce Interrupt Latency
- 16-Bit/32-Bit Wide Instructions with 32-Bit Wide Data Path
- Two Sets of 32 Core Register Files (32-bit) to Reduce Interrupt Latency
- Single-Cycle 32x16 Multiply and Two-Cycle 32x32 Multiply
- Hardware Divide Unit
- Zero Wait State Flash with ECC to Maximize Endurance/Retention
- Memory
- Up to 16K ECC Flash Memory
- Up to 4K Data Memory
- Analog Features
- Up to 14-Channel, Software-Selectable 10/12-Bit SAR Analog-to-Digital Converter (ADC):
- 12-bit, 200K samples/second conversion rate (single Sample-and-Hold)
- 10-bit, 300K samples/second conversion rate (single Sample-and-Hold)
- Two Analog Comparators with Input Multiplexing
- 5-Bit DAC with Output Pin
- Peripheral Features
- Two 4-Wire SPI modules (up to 25 Mbps) with I2S
- Two UART modules with LIN
- CRC module
- Hardware Real-Time Clock and Calendar (RTCC)
- Up to 20 Peripheral Pin Select (PPS) Remappable Pins
- Seven Total 16-Bit Timers:
- Timer1: Dedicated 16-bit timer/counter
- Two additional 16-bit timers in each MCCP and SCCP module
- Capture/Compare/PWM/Timer modules:
- Two 16-bit timers or one 32-bit timer in each module
- PWM resolution down to 21 ns
- One Multiple Output (MCCP) module:
- Flexible configuration as PWM, input capture, output compare or timers
- Six PWM outputs
- Programmable dead time
- Auto-shutdown
- Two Single Output (SCCP) modules:
- Flexible configuration as PWM, input capture, output compare or timers
- Single PWM output
- Two Configurable Logic Cells (CLC) with Internal Connections to Select Peripherals and PPS

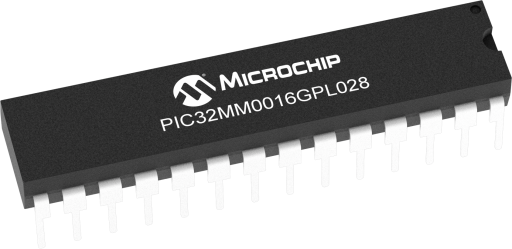

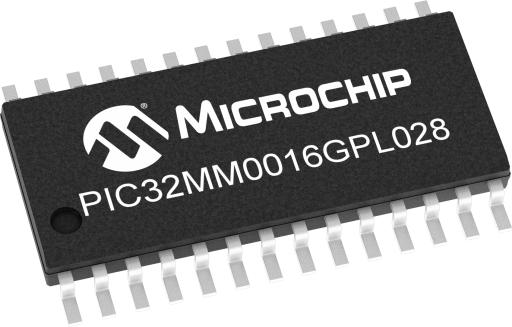

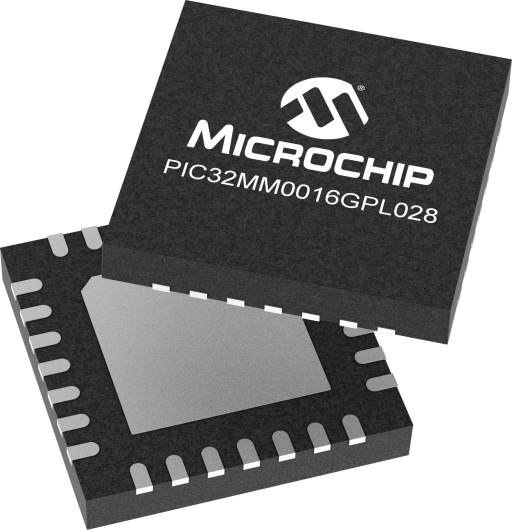

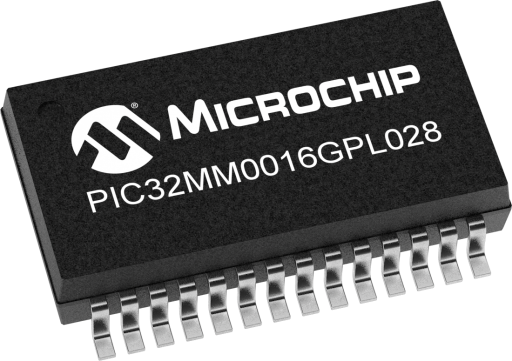

- Small Footprint Packages
- 4x4 mm in 20 QFN and 28 UQFN
- 5x5 mm in 40 uQFN
- 6x6 mm in 28 QFN and 36 QFN
The PIC32MM family is Microchip's lowest power and most cost-effective family of 32-bit PIC32 microcontrollers. For applications demanding low power, longer battery life and space constraints, the PIC32MM devices offer sleep modes down to 500 nA and packages as small as 4 × 4 mm.
This family features core independent peripherals, designed to offload the CPU, such as Configurable Logic Cells (CLC) and Multiple-output Capture Compare PWMs (MCCPs) which help enable sensorless BLDC motor control applications. The PIC32MM devices achieve a 79 CoreMark™ score at 25 MHz operation, featuring the compact microMIPS™ instructions, microAptiv™ UC core and a shadow register set for fast interrupt context switching. The microMIPS ISA combines 16-bit and 32-bit instructions for compact code size.
The PIC32MM devices are supported by Microchip’s MPLAB® Code Configurator (MCC) to help simplify designs. Target applications include IoT sensor nodes, connected thermostats, environmental monitoring devices, portable medical or fitness devices, building automation and low cost motor control applications.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
Library and Firmware
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| Tools |
|---|
| PIC32MM Curiosity Development Board
|
| The PIC32MM0064GPL036 Processor Plug-In Module (PIM) is designed to demonstrate the capabilities of the PIC32MM “GPL” family of low power and low cost devices. This PIM features the PIC32MM0064GPL036 40 UQFN device and the PIM plugs into the Explorer 16 or Explorer 16/32 Development Boards.
|
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The Softlog SEC-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2 and ICP2(HC) progra |
| The Softlog SEC4CH-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2GANG programmer. |
