Security with Trust Platform ATECC608, Touch, Ultra-low power, and Smart Analog
Overview

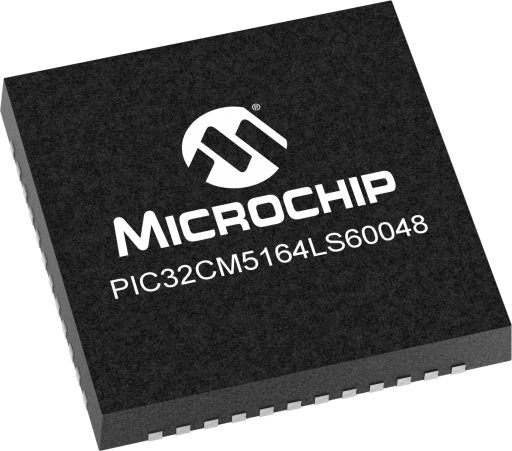

- Part Family:PIC32CM LS60
- CPU Type:Cortex-M23
- MaxSpeed (MHz):48
- Program Memory Size (KB):512
- SRAM (KB):64
- Temp. Range Min.:-40
- Temp. Range Max.:85
- Operation Voltage Min.(V):2
- Operation Voltage Max.(V):3.63
- I2C:3
- UART:3
- Crypto Engine:Yes
- Internal Oscillator:yes
- Pin Count:48
- Secure Subsystem:Yes
- Secure Boot:Yes
- Processor:
- Arm® Cortex®-M23
- 48 MHz (2.64 CoreMark/MHz)
- Hardware divider
- Nested Vector Interrupt Controller (NVIC)
- Memory Protection Unit (MPU)
- Operating Voltage Range:
- 2.0V to 3.63V
- Memory:
- 512 KB Flash
- 64 KB SRAM
- 16 KB Data Flash Write While Read(WWR) section
- 512 bytes TrustRAM
- Ultra-Low Power:
- Active, Idle, Standby with partial or full SRAM retention and off sleep modes
- Static and dynamic power gating
- SleepWalking peripherals
- Event System
- Embedded Buck/LDO regulator with on-the-fly selection
- Security:
- Integrated with Trust Platform ATECC608 CryptoAuthentication™ Device
- Arm TrustZone for flexible hardware isolation of memories and peripherals
- Secure Boot
- Device Identity Composition Engine (DICE) security standard support
- Rapid Tamper Erase on scrambling key and TrustRAM data
- 32-bit RTC with tamper detection
- AES-256/192/128, SHA-256, and GCM cryptography accelerators
- One True Random Generator (TRNG)
- Enhanced Peripheral Touch Controller (PTC):
- Driven Shield Plus for moisture tolerance and noise immunity
- Parallel Acquisition through Polarity control
- Supports wake-up on touch from Standby Sleep mode
- Low-power, high-sensitivity, environmentally robust capacitive touch buttons, sliders, wheels, and trackpads
- Advanced Analog:
- 12-bit, 1 MSPS Analog-to-Digital Converter (ADC)
- 12-bit, 1MSPS Digital-to-Analog Converter (DAC)
- Analog Comparators (AC) with window compare function
- Operational Amplifiers
- Additional Peripherals:
- USB Full Speed Device and Host
- I2S with up to 8-slot TDM and PDM microphone support
- USART, I2C, LIN, SPI, ISO7816, RS-485
- 16-bit & 24-bit Timer Counter for Control (TCC)
- 16-bit Timer Counters (TC), WDT and 32-bit RTC
- Development Support:
- MPLAB X IDE
- MPLAB Harmony v3 & MCC
- Two-pin Serial Wire Debug (SWD) programming and debugging interface
- Integrated with Trust Platform ATECC608 CryptoAuthentication™ Device
PIC32CM LS60 family of devices based on Arm® Cortex®-M23 processor bring hardened security, ultra-low power, superior touch, and smart analog integration in one package. They feature integrated Trust Platform ATECC608, Arm TrustZone, immutable secure boot, innovative low power techniques including SleepWalking peripherals, industry leading water tolerant touch, Op Amps, Analog to Digital Converter (ADC) & Digital to Analog Converter (DAC). They are supported by MPLABX IDE, MPLAB Harmony v3 and MPLAB Code Configurator (MCC).
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
3rd Party Tools
| Tools |
|---|
 The Trust Platform Design Suite (TPDS) is our onboarding tool for our security-related solutions. The full onboarding experience includes, but is not limited to:
Training and education about security concepts
Prototyping, including dummy key generation and code examples, available via our interactive application notes
Access to our provisioning system through a secure sub-system configurator and secure exchange process
|
| MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
|
| Tools |
|---|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Tools |
|---|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
