Ultra-low power, Touch and Smart Analog
Overview

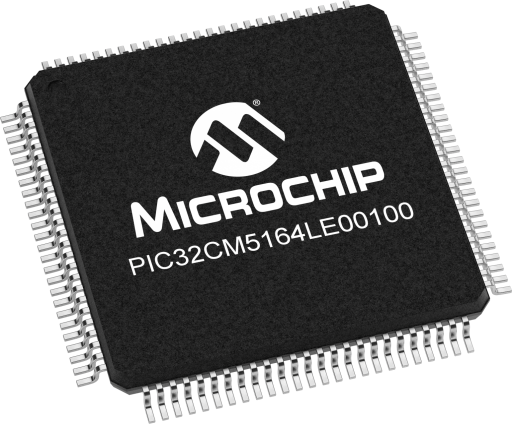

- Part Family:PIC32CM LE00
- CPU Type:Cortex-M23
- MaxSpeed (MHz):48
- Program Memory Size (KB):512
- SRAM (KB):64
- Temp. Range Min.:-40
- Temp. Range Max.:85
- Operation Voltage Min.(V):1.62
- Operation Voltage Max.(V):3.63
- I2C:6
- UART:6
- Crypto Engine:No
- Internal Oscillator:yes
- Pin Count:100
- Secure Boot:No
- Processor:
- Arm® Cortex®-M23
- 48 MHz (2.64 CoreMark/MHz)
- Hardware divider
- Nested Vector Interrupt Controller (NVIC)
- Memory Protection Unit (MPU)
- Operating Voltage Range:
- 1.62V to 3.63V
- Memory:
- 512 KB Flash
- 64 KB SRAM
- 16 KB Data Flash Write While Read(WWR) section
- 512 bytes TrustRAM
- Ultra-Low Power:
- Active, Idle, Standby with partial or full SRAM retention and off sleep modes
- Static and dynamic power gating
- SleepWalking peripherals
- Event System
- Embedded Buck/LDO regulator with on-the-fly selection
- Enhanced Peripheral Touch Controller (PTC):
- Driven Shield Plus for moisture tolerance and noise immunity
- Parallel Acquisition through Polarity control
- Supports wake-up on touch from Standby Sleep mode
- Low-power, high-sensitivity, environmentally robust capacitive touch buttons, sliders, wheels, and trackpads
- Advanced Analog:
- 12-bit, 1 MSPS Analog-to-Digital Converter (ADC)
- 12-bit, 1MSPS Digital-to-Analog Converter (DAC)
- Analog Comparators (AC) with window compare function
- Operational Amplifiers
- Additional Peripherals:
- USB Full Speed Device and Host
- I2S with up to 8-slot TDM and PDM microphone support
- USART, I2C, LIN, SPI, ISO7816, RS-485
- 16-bit & 24-bit Timer Counter for Control (TCC)
- 16-bit Timer Counters (TC), WDT and 32-bit RTC
- Development Support:
- MPLAB X IDE
- MPLAB Harmony v3 & MCC
- Two-pin Serial Wire Debug (SWD) programming and debugging interface
PIC32CM LE00 family of devices based on Arm® Cortex®-M23 processor bring ultra-low power, superior touch, and smart analog integration in one chip. They feature innovative low power techniques including SleepWalking peripherals, industry leading water tolerant touch, Op Amps, Analog to Digital Converter (ADC) & Digital to Analog Converter (DAC). They are supported by MPLABX IDE, MPLAB Harmony v3 and MPLAB Code Configurator (MCC).
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
3rd Party Tools
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| When combined with our free and award-winning MPLAB X Integrated Development Environment (IDE), the fully graphical frontend provides:
Editing errors and breakpoints that match corresponding lines in the source code
Single stepping through C and C++ (C++ only available in MPLAB XC32++ compilers) source code to inspect variables and structures at critical points
Data structures with defined data types, including floating point, display in watch windows
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
| Tools |
|---|
| The PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit is a hardware platform to evaluate the PIC32CM5164LS00048 microcontroller. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.
|
| Tools |
|---|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| A member of the ICP(G3) family of high-speed, production-grade in-circuit programmers. This compact, battery-powered device supports up to six different programming environments, making it an ideal, low-cost solution for field upgrades. ICP2PORT(G3)-PX programs Microchip 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs, 32-bit AVR, PIC & ARM Cortex M0/0+/23/3/4/7 MCUs and Serial EEPROMs & Flash ICs.
|
| The ICP2COMBO(G3)-DPX-8 Production Quality In-Circuit (ICSP) 8-channel (expandable up to 64 channels) GANG Programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs, 32-bit AVR, PIC & ARM Cortex M0/0+/23/3/4/7 MCUs and Serial EEPROMs & Flash ICs.
|
| The ICP2(G3)-DP Production Quality In-Circuit Programmer is a cost-effective programmer that operates with a PC or as a standalone unit. It programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs and Serial EEPROMs & Flash ICs. |
