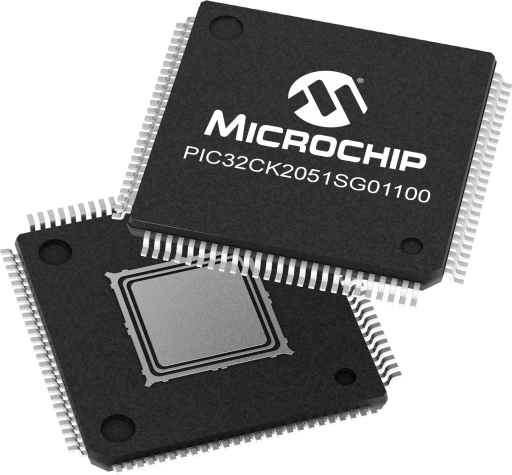

Arm® Cortex®-M33 Based MCU with 2 MB Flash/512 KB SRAM and HSM + TrustZone®
Overview
- Part Family:PIC32CK
- CPU:Cortex-M33
- CPU Speed Max MHz (megahertz):120
- Program Memory Size (KB):2048
- RAM (KB):512
- Multiple Flash Panels:Yes
- Secure Subsystem:Hardware Security Module
- Security Use Cases:Secure Boot,Secure Firmware Upgrade,Secure Communication,Node Authentication
- Hardware Crypto Graphic Features:ECC,RSA,AES,SHA,HMAC,CMAC,TRNG
- ARM Trust Zone:Yes
- Ethernet MAC:10/100 Ethernet + PTP
- Type of CAN module Max:CAN-FD
- CAN:2
- USB:High Speed,Full Speed
- Number of USB Modules:2
- SPI:8
- I2C:8
- I2S:1
- UART:8
- QSPI:1
- SDIO/SD-CARD/eMMC:2
- Hardware Touch Peripheral:PTC
- ADC Resolution Max b (bit):12
- ADC Channels:12
- ADC Sampling Rate (ksps):3125
- Direct Memory Access (DMA) Channels:12
- DAC Resolution (Bits):7
- Number of DACs:2
- Peripheral Pin Select / Pin Muxing:Yes
- Packages:100 TQFP
- Internal Oscillator:Yes
- Operation Voltage Max.(V):3.63
- Operation Voltage Min.(V):1.71
- TempRange Max:85
- TempRange Min:-40
- Supported in MPLAB Code Configurator:
- Arm Cortex-M33:
- Armv8-M Security Extensions
- Higher performance architecture (1.54 DMIPS/MHz)
- Clock frequencies to 120 MHz
- TrustZone® technology
- DSP instructions
- Faster floating-point math capabilities
- Memory:
- 2 MB Dual Panel Flash with ECC
- 512 KB SRAM
- 4 KB (I+D) cache
- 8 KB Backup Memory (TrustRAM and Data Flash)
- Connectivity:
- 10/100 Ethernet MAC with IEEE 1588
- 2 CAN-FD
- 2 USB (FS and HS)
- 2 SDHC/SDIO
- I2S, QSPI with XIP
- 8 SERCOM (ISO7816)
- PIC32CK SG Security Features:
- Isolated Hardware Security Module subsystem (CPU/memory/HSM)
- Secure Key storage
- TrustZone® hardware-enforced isolation in host Flash, SRAM, and peripherals
- Cryptographic accelerators
- 3DES, AES, ChaCha20, SHA, Poly1305, RSA, ECC (CNSA Compliant)
- Secure I/O, Secure DMA, Secure Debug
- Secure Boot and Secure Bootloader
- DICE compatible
- Tamper detection
- DPA countermeasures
- Available with factory secure custom provisioning
- User Interface:
- Peripheral Touch Controller (PTC) with Driven Shield®
- Parallel Capture Interface-Camera (PCC)
- 16-bit External Bus Interface (EBI) for SRAM, Flash, PSRAM, EEPROM, and LCD
- Analog:
- 12-bit 3.125Msps ADC with 12-channels
- 2-Analog Comparators
- Development Support:
- MPLAB X IDE
- MPLAB Harmony v3 and MCC
- MPLAB XC32 Compiler
- 2-wire Serial Wire Debug (SWD) Interface
- 4-Wire JTAG Scan/Debug Interface
- Embedded Trace Module with instruction trace stream
Arm® Cortex®-M33 Based 120 MHz MCUs with Connectivity Peripherals and On-chip Hardware Security Module (HSM) Subsystem
The PIC32CK SG/GC family of microcontrollers (MCUs) is based on the Arm® Cortex®-M33 technology. The M33 is optimized for power-sensitive microcontroller and mixed-signal applications. It improves performance over the previous generation, real-time determinism, energy efficiency, software productivity, and system security. The PIC32CK SG/GC family offers a large memory capacity with 2 MB of Dual Panel Flash and 512 KB of SRAM.
The SG variants are intended for highly secure connectivity and applications needing the most secure key management and cryptographic operations. The SG family combines an on-chip, fully isolated Hardware Security Module (HSM) with Arm TrustZone® technology. The GC variants are intended for general-purpose mixed-signal applications that do not need the HSM and advanced security features.
The PIC32CK SG/GC devices have connectivity options including standard serial communications (UART, USART, SPI, I2C, etc.,) I2S, USB, CAN FD, and 10/100 Ethernet. Advanced analog includes a 12-bit 3 Msps ADC and Peripheral Touch Controller.
