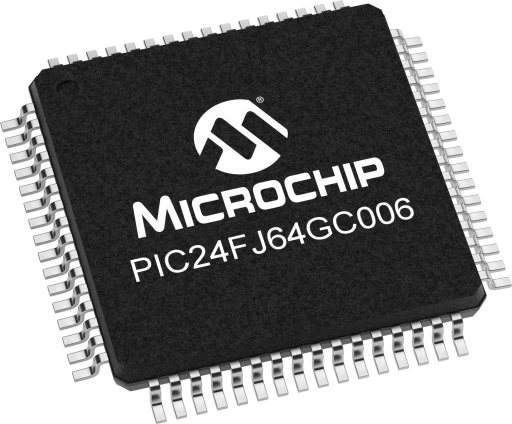

Low Power MCU w/ Integrated Analog, LCD & USB
Overview
- CPU Type:16-bit PIC MCU
- CPU Speed Max MHz (megahertz):16
- Program Memory Size (KB):64
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:6
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):85
- Operation Voltage Min.(V):2
- Operation Voltage Max.(V):3.6
- Pin Count:64
- Low Power:Yes
- Number of Comparators:3
- ADC Modules:2
- ADC Channels:2
- ADC Resolution Max:16
- ADC Sampling Rate (ksps):10000
- Number of DACs:2
- DAC outputs:2
- Max DAC Resolution (bits):10
- Hardware RTCC:Yes
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:9
- Output Compare Channels:9
- USB Interface:FS Device/Host/OTG
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:196
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Supported in MPLAB Code Configurator:Yes
- Integrated Analog Features
- 16-bit Sigma-Delta ADC (2 diff. ch) and 12-bit 10MSPS Pipeline ADC (50 ch)
- 2x10-bit 1MSPS DAC
- 2 Operational Amplifiers
- 3 Comparators
- 3 Voltage References
- Charge Time Measurement Unit (CTMU)
- eXtreme Low Power features
- VBAT allows for lowest power consumption on backup battery (with or without RTCC)
- 18 nA Deep Sleep mode
- 350 nA RTCC in Vbat mode
- 380 nA Low Voltage Sleep mode (RAM retention)
- 400 nA Real Time Clock & Calendar operation in Sleep modes
- 240 nA Watch Dog Timer operation in Deep Sleep modes
- 180 µA/MHz Run mode
- Power Modes: Run, Doze, Idle, Sleep, Low Voltage Sleep, Deep Sleep, Vbat
- Multiple, flexible clock modes for optimum performance and power management
- Deep Sleep Wake Sources: DSBOR, DSWDT, INT0 and RTCC
- CPU
- Up to 16 MIPS performance
- Single Cycle Instruction Execution
- 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
- C Compiler Optimized Instruction Set Architecture
- 6 Channel DMA
- Select Peripherals
- USB with Device/Host/OTG support with Active Clock Tuning (no crystal required)
- Segmented LCD driver with charge-pump, 59 seg. x 8 comm.
- Peripheral Pin Select allows I/O remapping of many peripherals in real time
- Hardware RTCC, Real-Time Clock Calendar with alarm system
- Internal oscillators support - 31 kHz to 8 MHz, up to 32 MHz with 96 MHz PLL
- Fail-Safe Clock Monitor - allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- System Supervisors: Low Power BOR, WDT, INT0 and RTCC
- JTAG Boundary Scan
PIC24F 16-bit Flash Microcontroller with low noise, high throughput, integrated Intelligent Analog ideal for portable & industrial applications. Segmented LCD, USB, and eXtreme Low Power consumption enable small footprint and long battery life.
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
Library and Firmware
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| Tools |
|---|
| The PIC24F Curiosity Development Board is a cost-effective, fully integrated 16-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip’s MPLAB® X IDE and MPLAB Xpress Cloud-based IDE, the board includes an integrated programmer/debugger and requires no additional hardware, making it a perfect starting point to explore PIC24F MCUs.
|
| The MPLAB Starter Kit for PIC24F Intelligent.Integrated.Analog is a comprehensive development kit featuring the PIC24F “GC” family of 16-bit microcontrollers. This family features advanced integrated analog which reduces BOM cost, lowers noise, and has faster throughput.
|
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
