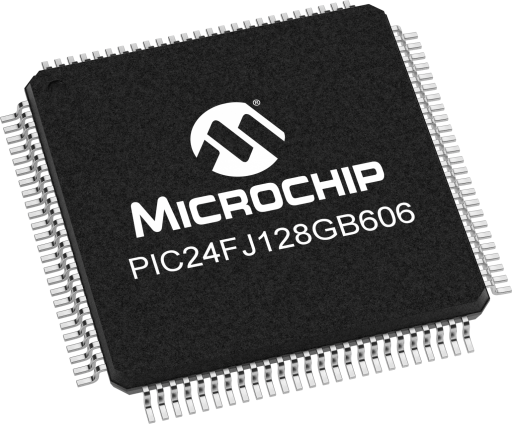

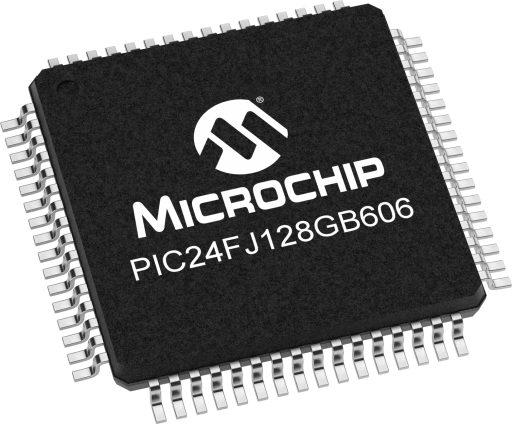

XLP MCU w/ 128KB Dual Flash, Live Update, USB
Overview
- CPU Type:16-bit PIC MCU
- CPU Speed Max MHz (megahertz):16
- Program Memory Size (KB):128
- Multiple Flash Panels:True
- Direct Memory Access (DMA) Channels:8
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):125
- Operation Voltage Min.(V):2
- Operation Voltage Max.(V):3.6
- Pin Count:64
- Low Power:Yes
- Number of Comparators:3
- ADC Modules:1
- ADC Channels:16
- ADC Resolution Max:12
- ADC Sampling Rate (ksps):200
- Number of DACs:0
- DAC outputs:0
- Max DAC Resolution (bits):0
- Hardware RTCC:Yes
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:1
- Output Compare Channels:6
- USB Interface:FS Device/Host/OTG
- Number of CAN Modules:0
- Type of CAN module Max:None
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:0
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):4
- Peripheral Pin Select (PPS)/Pin Muxing:Yes
- Supported in MPLAB Code Configurator:Yes
- CPU
- Modified Harvard Architecture
- Up to 16 MIPS Operation @ 32 MHz
- 8 MHz Internal Oscillator:
- 96 MHz PLL option
- Multiple clock divide options
- Run-time self-calibration capability for maintaining better than ±0.20% accuracy
- Fast start-up
- 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
- 32-Bit by 16-Bit Hardware Divider
- 16 x 16-Bit Working Register Array
- C Compiler Optimized Instruction Set Architecture
- Two Address Generation Units for Separate Read and Write Addressing of Data Memory
- Live Update
- Dual Partition Flash with Live Update Capability
- Capable of Holding Two Independent Software Applications, including Bootloader
- Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
- Allows Run-Time Switching Between Active Partitions
- Low-Power Features
- Sleep and Idle modes Selectively Shut Down Peripherals and/or Core for Substantial Power Reduction and Fast Wake-up
- Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
- Alternate Clock modes Allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
- Universal Serial Bus (USB) Features
- USB v2.0 On-The-Go (OTG) Compliant
- USB Device mode Operation from FRC Oscillator – No Crystal Oscillator Required
- Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
- Supports up to 32 Endpoints (16 bidirectional)
- Supports Control, Interrupt, Isochronous and Bulk Transfers
- On-Chip Pull-up and Pull-Down Resistors
- Analog Features
- 10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
- 12-bit conversion rate of 200 ksps
- Auto-scan and threshold compare features
- Conversion available during Sleep
- Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
- Charge Time Measurement Unit (CTMU):
- Used for capacitive touch sensing, up to 24 channels
- Time measurement down to 100 ps resolution
- Peripheral Features
- Peripheral Pin Select (PPS) –Allows Independent I/O Mapping of Many Peripherals
- Eight-Channel DMA Supports All Peripheral modules
- Six Input Capture modules, Each with a Dedicated 16-Bit Timer
- Six Output Compare/PWM modules, Each with a Dedicated 16-Bit Timer
- Four Single Output CCPs (SCCPs) and Three Multiple Output CCPs (MCCPs)
- Enhanced Parallel Master/Slave Port (EPMP/EPSP)
- Hardware Real-Time Clock/Calendar (RTCC) with Timestamping
- Programmable 32-Bit Cyclic Redundancy Check (CRC) Generator
- Four Configurable Logic Cells (CLCs)
- 5.5V Tolerant Inputs on Multiple I/O Pins
The eXtreme low power, PIC24F MCU includes up to 128KB of Flash memory with Error Correction Code (ECC) ,32 KB of RAM and USB connectivity. This device also features dual-partition Flash with Live Update capability, enabling them to hold two independent software applications, permitting simultaneous programming of one partition while executing application code from the other. With the ability to perform over-the-air firmware updates, designers can provide a cost-effective, reliable and secure method for updating their applications. These MCUs also feature eXtreme low power modes with current consumptions as low as 300nA in sleep modes.
This powerful combination of features makes the PIC24F “GA6” family ideal for industrial, computer, medical/fitness and portable applications that require a long battery life, and data transfer and storage without the need of external memory, such as electricity metering, HVAC control, fingerprint scanners and gaming.
This powerful combination of features makes the PIC24F “GA6” family ideal for industrial, computer, medical/fitness and portable applications that require a long battery life, and data transfer and storage without the need of external memory, such as electricity metering, HVAC control, fingerprint scanners and gaming.
