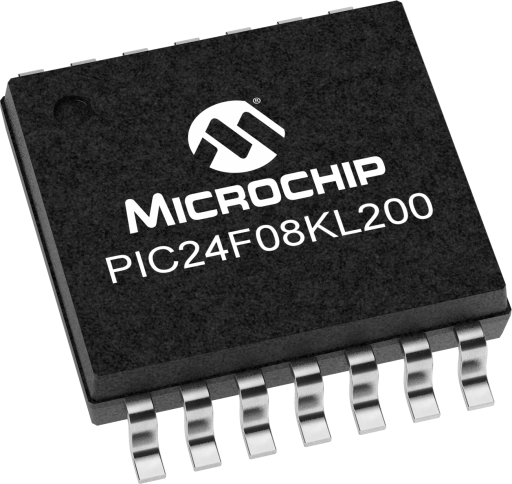

Low-Cost, Low Power MCU with 16 MIPS
Overview
- ADC Resolution b (bits):10
- ADC Sampling Rate (ksps):500
- ADC Modules Min MB megabyte MB (megabyte):1
- CAN/CAN-FD:0
- Type of CAN module Max A (ampere):None
- Configurable Logic Cell (CLC/CCL):0
- CPU:16-bit PIC MCU
- CPU Speed (MIPS/DMIPS):16
- Number of Comparators:1
- DAC Resolution (Bits):0
- DAC Outputs:0
- Number of DACs:0
- Hardware RTCC/RTC:No
- Number of PWM Time Bases:2
- Operation Voltage Max.(V):3.6
- Operation Voltage Min.(V):1.8
- Output Compare Channels:2
- SMPS:0
- Segmented LCD (# of segments):0
- USB:None
- Program Memory Size (KB):8
- Peripheral Pin Select / Pin Muxing:No
- Direct Memory Access (DMA) Channels:0
- Multiple Flash Panels:0
- Graphics Controller/GPU:No
- Motor Control PWM Outputs:0
- Quadrature Encoder Interface:0
- Low Power:Yes
- ADC Channels:7
- Pincount:14
- Crypto Engine:No
- TempRange Min:-40
- TempRange Max:85
- Typical XLP specifications include:
- Sleep mode currents as low as 30nA at 25C
- Run mode currents under 350uA/MHz
- Idle mode currents under 80uA/MHz at 1.8V
- Watchdog timer as low as 210nA at 25C
- CPU:
- Up to 16 MIPS performance
- Single Cycle Instruction Execution
- 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
- C Compiler Optimized Instruction Set System
- Peripherals:
- 10-bit ADC, up to 12 - channel, 500k samples per second
- Analog rail-to-rail comparator
- UART Module with LIN and IrDA support
- Master Synchronous Serial Port module (MSSPs) with two modes of operation : SPI/ I2C™
- Two CCP modules
Cost effective PIC24F 16-bit Microcontroller
featuring nanoWatt XLP for eXtreme Low Power consumption. Includes PIC18
peripherals such as MSSP (I2C/SPI) and CCP for flexibility and easy migration.
Ideal for cost sensitive applications requiring 16 MIPS performance.
