Overview
- Program Memory Size (KB):32
- RAM:2048
- Data EEPROM (bytes):1024
- Pin Count:80
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:12
- ADC Channels:24
- Zero Cross Detect:False
- Number of Comparators:3
- SPI:2
- I2C:2
- Stand alone PWM:0
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
- nanoWatt XLP technology for low sleep, RTCC, LCD and WDT currents
- Low-Power BOR
- Ultra Low-Power Wake-Up
- Fast Wake-Up
- Low Input Leakage Currents
- Up to 16 MIPS Performance
- Operating Speed up to 64 MHz
- Operating Voltage Range: 1.8 to 5.5V
- 8 X 8 Single-Cycle Hardware Multiplier
- Three Internal Oscillators: 31 kHz, 500 kHz, 16 MHz
- LCD Driver
- Up to 48 Segments and 192 Pixels
- Drives LCD Panel in Sleep Mode
- Programmable LCD Timing Module
- Charge Time Measurement Unit for mTouch Sensing
- A/D Converter
- 12-bit Resolution
- 24 Channels
- Eight CCP/ECCP Modules
- Eight 8/16-bit Timer/Counter Modules
- Three Analog Comparators
- Hardware Real-Time Clock and Calendar (RTCC)
- Two Master Synchronous Serial Port Modules

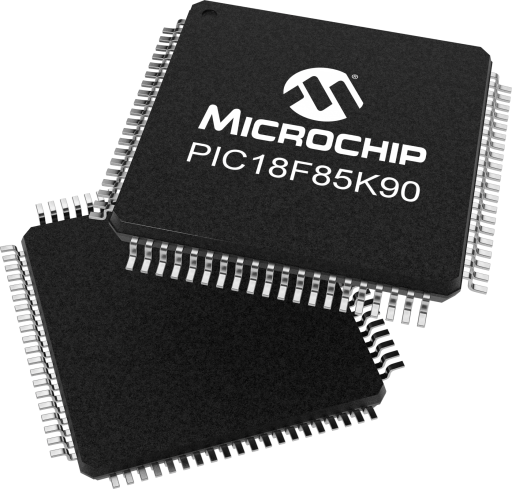

The PIC18F87K90 family of 8-bit microcontrollers, featuring nanoWatt XLP technology and the Charge Time Measurement Unit (CTMU) module, provide ideal solutions for battery-powered LCD applications utilizing touch interfaces. With 24 channels of capacitive touch sensing in an 80-pin package, these MCUs enable higher system integration – combining large segmented LCDs with the capability for a high number of touch sliders, buttons and keys or touch screen technology. Industry-leading low power operation exhibited by this family of microcontrollers helps to extend battery life in applications such as portable medical devices, thermostats, security systems, utility meters, small appliances, and electronic door locks.
