Overview
- ADC Resolution Max b (bit):12
- Number of Comparators:2
- Data EEPROM (bytes):256
- Data Signal Modulator (DSM):0
- Numerically Controlled Oscillator (NCO):1
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- RAM B (byte):4096
- Program Memory Size (KB):64
- Low Power:Yes
- ADC Channels:35
- Pincount:40
- Stand alone PWM:3
- Zero Cross Detect:1
- Two Operational Amplifiers
- 5.5 MHz Gain Bandwidth
- Programmable Gain using Internal Resistor Ladder
- Built-in hardware peak detect operation
- 12-bit Differential Analog-to-Digital Converter with Computation and Context Switching:
- Up to 43 external channels
- Differential or single-ended ADC conversion
- Automated math functions on input signals
- Averaging, filter calculations, oversampling and threshold comparison
- Four Separate Contexts (settings and results) saved and accessible separately
- Operates in Sleep
- Five internal analog channels
- Hardware Capacitive Voltage Divider (CVD) Support
- Automates touch sampling and reduces software size and CPU usage
- One 10-Bit Digital-to-Analog Converters (DAC)
- Two 8-Bit Digital-to-Analog Converters (DAC)
- Two High-speed Comparators (CMP)
- Analog Peripheral Manager
- Can be used to optimize power consumption in applications that use analog peripherals by switching them
- 8-Bit Signal Routing Port
- Provides internal ports used to interconnect digital peripherals
- Two Universal Timers
- Two 16-bit timers can be chained together to create a combined 32-bit timer
- Four Direct Memory Access (DMA) Controllers
- Three 16-bit dual PWMs provide six PWM outputs
- Vectored Interrupt (VI) Capability - Faster interrupt response time
- Selectable high/low priority
- Fixed interrupt latency of three instruction cycles
- Programmable vector table base address
- Backwards compatible with previous interrupt capabilities
- Low Power Mode Features
- Sleep: < 1μA typical @ 3V
- Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower)
- Idle: CPU Halted While Peripherals Operate
- Sleep: Lowest Power Consumption
- Peripheral Module Disable (PMD)
- Peripheral Pin Select (PPS)
- Enables pin mapping of digital I/O
- Communication
- Two UART - One UART supports LIN/DMX/DALI
- SPI/I2C
- Programming/Debugging Features
- In-Circuit Serial Programming™ (ICSP™) via Two Pins
- In-Circuit Debug (ICD) with Three Breakpoints via Two Pins
- Debug Integrated On-Chip

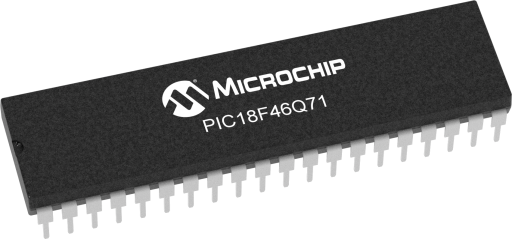

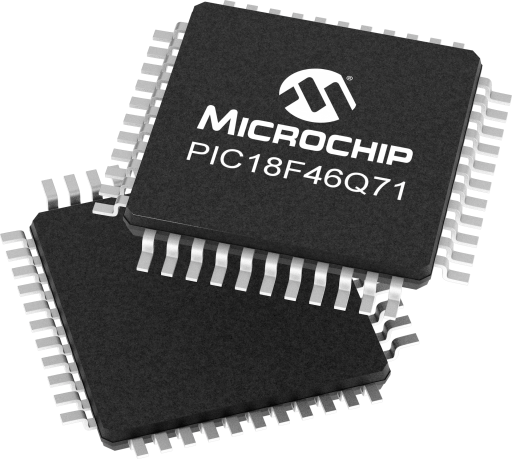

PIC18-Q71 broadens the PIC18 portfolio for high bandwidth, mixed signal and sensor applications with 2 integrated operational amplifiers, 12-bit differential ADC with Computation and Context Switching, 8/10-bit DACs, high-speed analog comparators, Analog Peripheral Manager and a 8-bit signal routing port to interconnect digital peripherals. These 28-, 40- and 48-pin devices are also equipped with three 16-bit dual PWMs outputs, four Direct Memory Access channels, eight Configurable Logic Cells (CLCs) and two UARTS. The rich set of Core Independent Peripherals enable simple analog configurations and quick responses to system events in a variety of applications including lighting, motor control, medical, home automation, automotive and Internet of Things (IoT).
PIC18-Q71 Product Family Overview
Use your up or down key to switch images.
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| Tools |
|---|
| The Curiosity HPC Development Board is a cost-effective, fully integrated 8-bit development platform targeted at first-time users, makers and those seeking a feature-rich, rapid prototyping board. Designed from the ground-up to take full advantage of Microchip’s MPLAB® X integrated development environment, Curiosity HPC includes an integrated programmer/debugger, and requires no additional hardware to get started. Supports 28 or 40-pin 8-bit PIC® Microcontrollers.
|
| Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the PIC18F56Q71 Curiosity Nano Evaluation Kit offers complete support for your next design.
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the PIC18F56Q71. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
