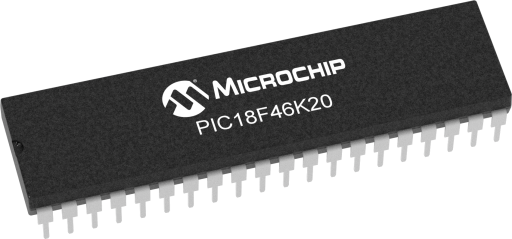

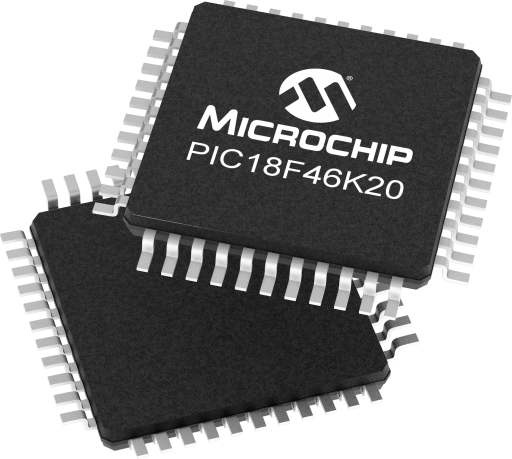

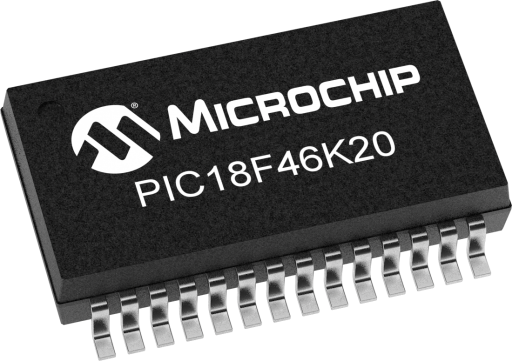

Overview
- Program Memory Size (KB):64
- RAM:3936
- Data EEPROM (bytes):1024
- Pin Count:40
- Operation Voltage Max.(V):3.6
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:10
- ADC Channels:13
- Zero Cross Detect:False
- Number of Comparators:2
- SPI:1
- I2C:1
- Stand alone PWM:0
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
- Optional extended instruction set designed to optimize re-entrant code
- Up to 1024 bytes Data EEPROM
- Up to 64 Kbytes Linear program memory addressing
- Up to 3936 bytes Linear data memory addressing
- Up to 16 MIPS operation
- 16-bit wide instructions, 8-bit wide data path
- Priority levels for interrupts
- 31-level, software accessible hardware stack
- 8 x 8 single-cycle hardware multiplier
- Factory calibrated to ± 1%
- Software selectable frequencies range of 31 kHz to 16 MHz
- 64 MHz performance available using PLL
- no external components required
- Four crystal modes up to 64 MHz
- Two external clock modes up to 64 MHz
- 4X Phase Lock Loop (PLL)
- Secondary oscillator using Timer1 @ 32 kHz
- Fail-Safe Clock Monitor:
- Allows for safe shutdown if peripheral clock stops
- Two-Speed Oscillator Start-up
- Operating Voltage Range: 1.8V to 3.6V
- Self-Programmable under Software Control
- Interrupt on High/Low-Voltage Detection
- With software enable option
- Programmable period from 4 ms to 131s
- Single-Supply 3V In-Circuit Serial Programming™ (ICSP™) via two pins
- In-Circuit Debug (ICD) via Two Pins
- Sleep mode: 100 nA
- Watchdog Timer: 500 nA
- Timer1 Oscillator: 500 nA @ 32 kHz
- 10-bit resolution, 13 External Channels
- Auto-acquisition capability
- Conversion available during Sleep
- 1.2V Fixed Voltage Reference (FVR) channel
- Independent input multiplexing
- Two rail-to-rail analog comparators
- Independent input multiplexing
- Programmable (% VDD), 16 steps
- Two 16-level voltage ranges using VREF pins
- High-Current Sink/Source 25 mA/25 mA
- Three programmable external interrupts
- Four programmable interrupt-on-change
- Eight programmable weak pull-ups
- Programmable slew rate
- Capture/Compare/PWM (CCP) module
- One, two or four PWM outputs
- Selectable polarity
- Programmable dead time
- Auto-Shutdown and Auto-Restart
- 3-wire SPI (supports all 4 modes)
- I2C™ Master and Slave modes with address mask
- Supports RS-485, RS-232 and LIN
- RS-232 operation using internal oscillator
- Auto-Wake-up on Break
- Auto-Baud Detect
