MCU + Vreg + LIN Transceiver
Overview
- Program Memory Size (KB):14
- RAM:1024
- Data EEPROM (bytes):256
- Pin Count:20
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):2.3
- ADC Resolution Max:10
- ADC Channels:9
- Zero Cross Detect:False
- Number of Comparators:2
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):1
- Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
- Flash Program Memory with self read/write capability
- Internal 32MHz oscillator
- MI2C, SPI, EUSART w/auto baud
- 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
- CVREF can be used as 5-bit DAC
- 10-bit ADC with Voltage Reference
- Integrated mTouch Capacitive Touch Sensing capability
- Supports LIN Bus Specifications Version 1.3, 2.0, 2.1 and SAE J2602
- Integrated 5.0V Vreg with output current of 70mA and current limit greater than 250mA
- ESD performance on Vbb & LIN pins > 15KV (IEC 61000-4-2)
- Meets stringent Automotive OEM requirements

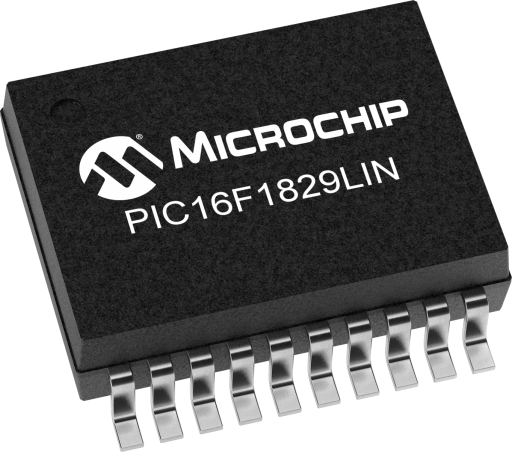

The PIC16F1829LIN is a small footprint, MCU + Vreg + LIN Transceiver in a single package. Combining the flexible PIC16F1829 microcontroller with the powerful MCP2021A LIN transceiver enables a complete solution for LIN nodes and endpoints, compatible with LIN Specification versions 1.3, 2.0, 2.1, and SAEJ2602
