Sub-GHz IC
Overview
- Program Memory Size (KB):2.3
- RAM:201
- Data EEPROM (bytes):64
- Pin Count:8
- Operation Voltage Max.(V):3.7
- Operation Voltage Min.(V):2
- ADC Resolution Max:0
- ADC Channels:0
- Zero Cross Detect:False
- Number of Comparators:0
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:No
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
- Factory calibrated to ±1%
- In-Circuit Serial Programming™ (ICSP™)
- Power-on Reset (POR)
- Device Reset Timer (DRT)
- Watchdog Timer (WDT) with Dedicated On-Chip
- Programmable Code Protection
- Multiplexed MCLR Input Pin
- Internal Weak Pull-ups on I/O Pins
- Power-Saving Sleep mode
- Wake-up from Sleep on Pin Change
- INTRC: 4 MHz or 8 MHz precision internal RC oscillator
- EXTRC: External low-cost RC oscillator
- XT: Standard crystal/resonator
- LP: Power-saving, low-frequency crystal
- Fully Integrated Transmitter
- FSK Operation up to 100 kbps
- OOK Operation up to 10 kbps
- Frequency-Agile Operation in 310, 433, 868 and 915 MHz Bands
- Configurable Output Power: +10 dBm, 0 dBm
- 225 nA @ 2.0V, RF Sleep, typical
- 175 µA @ 4 MHz, 2.0V, RF Sleep, typical
- 9.17 mA @ 4 MHz, 2.0V, RF on at +0 dBm, typical
- 15.17 mA @ 4 MHz, 2.0V, RF on at +10 dBm, typical

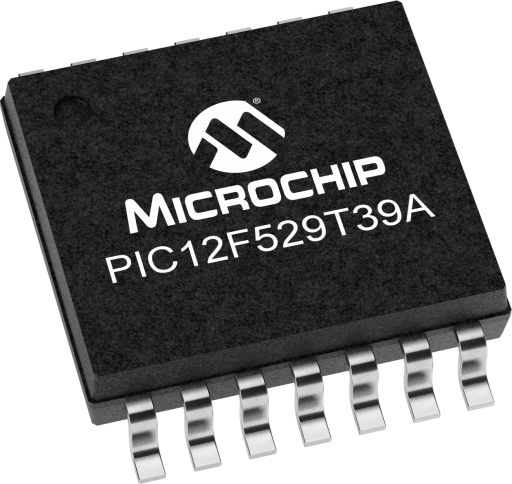

PIC micro® with fully integrated RF Transmitter capable of operation in 310, 433, 868 and 915 MHz Bands.
