PCIe Peripheral
Overview
Alternate products
Compare Products
(5)
- PCI:PCIe Peripheral
- Temp Range Min (°C):-40
- Temp Range Max (°C):105
- IEEE 1588 v2:Yes
- Highly integrated PCIe Peripheral sub-system
- USB 3.2 Gen 2 XHCI HOST controller
- 10G USB-SS HOST (x2)
- 480M USB-HS HOST (x4)
- 2.5Gbps Ethernet
- Precision Time Protocol
- Multiple Tx&Rx queues
- Jumbo Frames
- MII/RGMII/SGMII+
- Serial Interfaces
- RS-232 with complete signalling available
- RS-485 with automatic direction control
- Extended IO
- SPI controller with multiple CS
- I2C controller
- GPIO

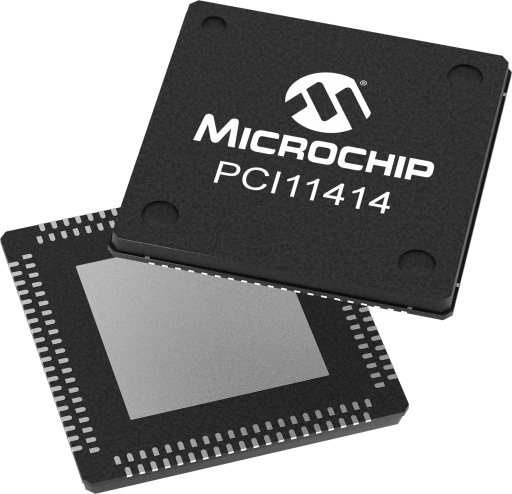

The Microchip PCI11414 is a single-chip PCIe switch with an integrated USB 3.2 Gen 2 host controller, Ethernet MAC and programmable I/O. The integrated PCIe physical interfaces provide a 4-lane (4x8GT/s) upstream port and a 1-lane (1x8GT/s) downstream port. The device is targeted to address the need for higher bandwidth PCIe sub-systems within embedded applications. PCIe upstream can be delivered across a single or multiple lanes to accommodate varying system bandwidths.
The PCI11414 includes a USB-IF and xHCI compliant USB 3.2 Gen 2 host controller which provides one USB 3.2 Gen 2 (USB Type-C) port, and three USB 2.0 HS/FS/LS (USB Type-A) ports. USB-C support is provided, with CC1 & CC2 (Configuration Control) being managed by the PCI11414. Overcurrent Sense (OCS) and Port Control are provided for control of Vbus.
The PCI11414 also includes an IEEE 802.3 compliant 2.5Gbps Ethernet MAC. The integrated RGMII and SGMII interfaces support 10/100/1000Mbps and 1/2.5Gbps operation, respectively.
A programmable pin multiplexer is used to map I/O functions to package pins. This enables designers to work with either a default configuration or modify signals to best fit their application. Example signals include those associated with USB operation, through to GPIO or SMBus, which are accessed via a dedicated PCIe Endpoint Controller.
Click Here for a brief video about Microchip PCIe products.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
Library and Firmware
| Tools |
|---|
 The EVB-PCI11414 is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the PCI11414.
|
