NTS 02-G
Overview
- Form Factor:1U 6 inch with rack mount
- Ethernet Ports:3
- T1/E1/J1 and 10 MHz Outputs:No
- Secondary Power Supply:No
- Oscillator:TCXO
- Pulse and time code distribution :No
- Key Features
- GPS and GLONASS support
- Isolated power supply
- Three independent RJ45 Ethernet ports
- PTP (IEEE® 1588v2:2008) server/client function
- Network Time Protocol (NTP) and Simple Network Time Protocol (SNTP) support
- UTC and LST with user-defined DST
- Remote configuration and upgrades over Ethernet
- Configuration encryption and security
- Physical
- Design: 1/2 of a 1U rack-mount bracket designed for 19 inch cabinets, a 1U 19" rack mount is included with every clock
- Ingress Protection: IP40
- Measurements: (W) 160 mm x (D) 155 mm x (H) 40 mm
- Weight: 0.8 kg
- Display: 2-line x 16 character FSTN backlot display
- Button: Display Mode Button
- USB: USB Configuration Port (Type B)
- GNSS Receiver
- L1, C/A code 32 Channel Parallel-tracking receiver
- Frequency: 1598 MHz
- Sensitivity (Acquisition): -155 dBm
- Sensitivity (Tracking): -160 dBm
- Oscillator (TCXO)
- Drift over 24 hours at 25 degrees °C: 0.55 ms
- Network Time Server Option
- Protocols Supported: ARP, UDP, ICMP, DHCP, SNMP v1, v2c, v3, VLAN
- IEEE 1588v2 (PTP):
- P2P/E2E delay,
- 1-Step/2-Step delay,
- IEEE C37.238-2011 Power Profile,
- IEEE C37.238-2017 Power Profile,
- IEC/IEEE 61850-9-3 Power Utility Profile,
- ITU-T G.8265.1 Telecom Profile (timeReceiver only),
- ITU-T G.8275.1 Telecom Profile
- NTP/SNTP: Stratum 1 NTP & SNTP Time server, Multicast and Broadcast capability
- PRP: IEC 62439-3 (2016), Fast Failover slave, supports up to one PRP pairs, PTP (IEEE 1588v2) Default and Power Profiles
- SNMP: V1, V2c and V3 support can be independently enabled, configurable V1, V2c community names and security groups, Fully configurable via SNMP
- Notifications: SNMP trap generation V1, V2c, V3, SNMPv3 traps can be authenticated and privatized via USM, Syslog (RFC-3164 and 5424 verities)

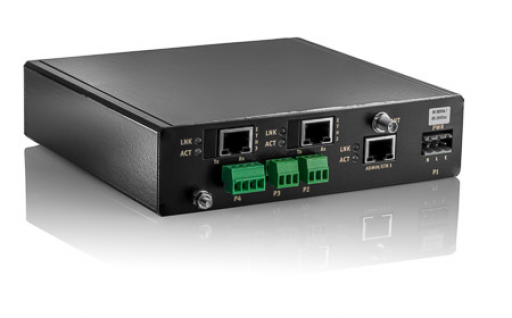

- Inputs and Outputs
- 1 x RS422 Programmable Output:
- RS422 +/- 3.3 V Output, 32 unit loads
- 3 Pin Connector
- 1 x RS422 IRIG-B Input:
- RS422 -7V to +12 V common mode range
- IRIG-B Input
- 1/8th unit load
- 3 Pin Connector
- 2 x Configurable Relay Outputs:
- Normally Open Contacts (2 Pin)
- Contact Rating: 275 Vdc, 100mA
- 3 x RJ45 10/100 Mbps UTP connector:
- NTP/SNTP and PTP
- Timing stamp accuracy: <100 ns to UTC
- Environmental & Electrical
- 1x Power Supply
- Low Voltage: 14 - 36 Vdc
- Medium Voltage: 20-75 Vdc
- High Voltage: 90-300 Vdc
- Power Drain: 3 W Max.
- Operating Temperature: -10°C to +65°C
- Humidity: To 95% non-condensing

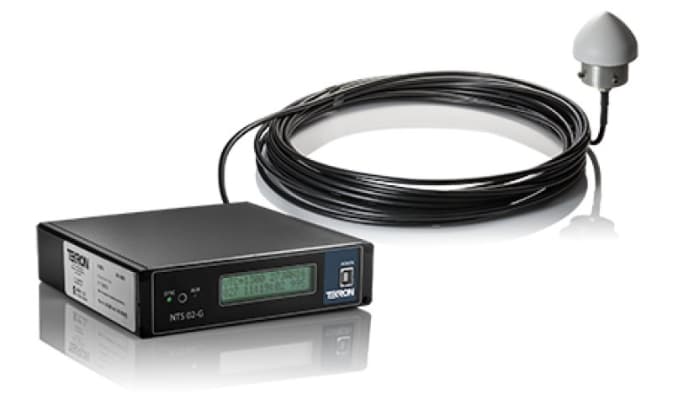

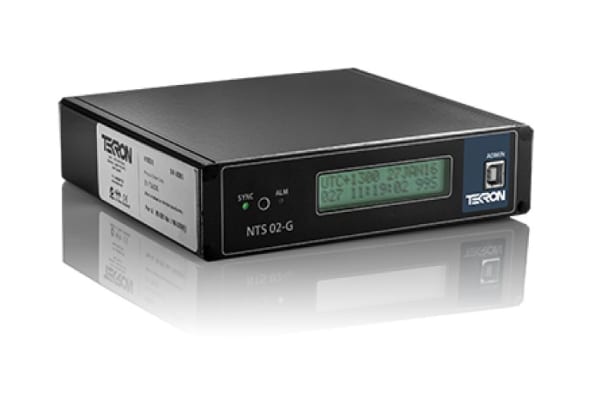

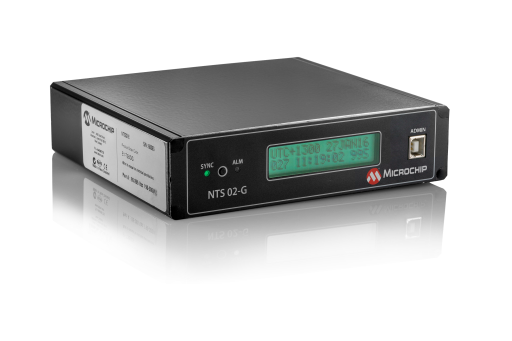

The NTS 02-G is a high precision, three-port GNSS (GPS/GLONASS) referenced Network Time Protocol (NTP) and Precision Time Protocol (PTP) grandmaster or boundary clock. Compliant to the IEEE® 1588v2-2008 protocol, NTS 02-G provides secure, accurate and reliable time synchronization to digital substation networks.
Each port is independently addressable and logically isolated to connect multiple networks to the same clock without compromising the network security. The addition of multi-level password protection, user access rights, SNMPv3 and built-in NTP amplification attack immunity makes the NTS 02-G a versatile synchronization solution for a range of critical network applications.
