1200V, 2.7 mOhm, D3, Phase Leg mSiC™ MOSFET Module
Overview

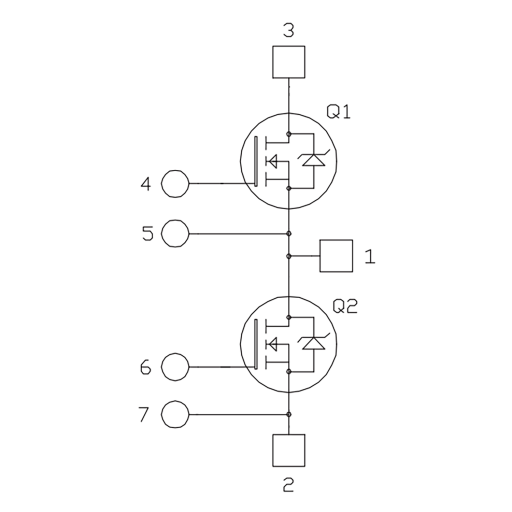

- Configuration:Phase Leg
- Silicon Type:SiC MOSFET
- VDSS (V):1200
- Current A (ampere):584
- RDSon (mΩ) typ:2.7
- Total Gate Charge (nC):2088
- Rise Time tR ns (nanosecond):55
- Fall Time tF ns (nanosecond):67
- MaxOperatingJunctionTemp:175

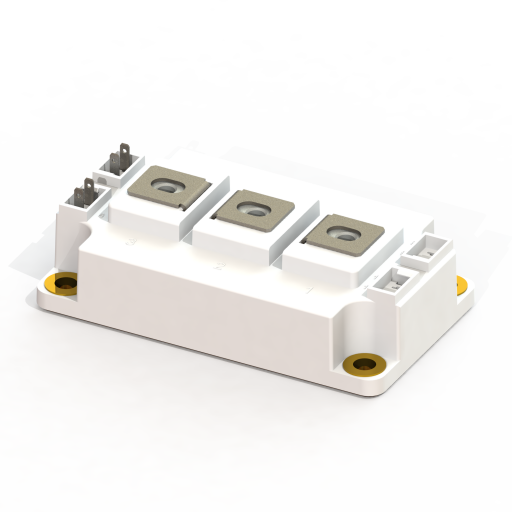

- PKG:D3
• SiC Power MOSFET
- Low RDS(on)
- High-temperature performance
• Kelvin source for easy drive
• Low stray inductance
• Internal thermistor for temperature monitoring (optional)
• High-efficiency converter
• Outstanding performance at high-frequency operation
• Stable temperature behavior
• Direct mounting to the heatsink (isolated package)
• Low junction to case thermal resistance
• RoHS Compliant
Use your up or down key to switch images.
Tools And Software
Development Environment
| Tools |
|---|
 Advanced Converter-Level Simulation for SiC Devices
Adopt SiC with ease, speed and confidence. The MPLAB SiC Power Simulator calculates the power losses and estimates junction temperature for SiC devices using lab testing data for common power converter topologies in DC-AC, AC-DC and DC-DC applications. This simulator allows you to evaluate device performance quickly in your power converter design.
|
