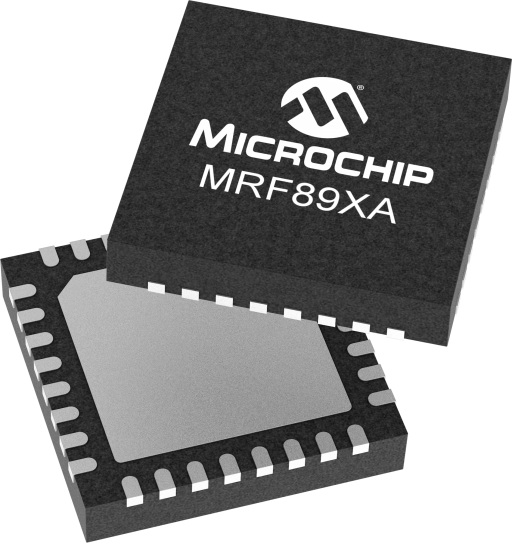

MRF89XA | Microchip Technology

Overview

  • Flash (KB):0
  • Frequency Range:863 to 960
  • Link Budget:125.5
  • Data Range (Kbps) Max:40
  • Modulation:FSK, OOK
  • Operating Temp (°C) Min:-40
  • Operating Temp (°C) Max:85
  • Operating Voltage (V) Min:2.1
  • Operating Voltage (V) Max:3.6
  • RX Current Consumption (mA):3
  • TX Current Consumption (mA):25
  • RX Sensitivity (dBm):-113
  • SRAM (KB):0
  • Sleep Mode Current Consumption (μA):0.1
  • TX Output Power (dBm):12.5
  • Host Interface:SPI
Read more
  • Fully integrated ultra low-power, sub-GHz transceiver
  • Wide band - Half-duplex transceiver
  • Supports proprietary sub-GHz wireless protocols
  • Simple, 4-wire SPI-compatible interface
  • CMOS/TTL-compatible I/Os
  • On-chip oscillator circuit
  • Dedicated clock output
  • Supports power-saving modes
  • Operating voltage: 2.1V-3.6V
  • Low-Current Consumption, Typically: - 3 mA in RX mode - 25 mA @ +10 dBm in TX mode - 0.1µA (Typical) and 2 µA (Maximum) in Sleep mode
  • Supports Industrial Temperature
  • Small, 32-pin TQFN package - Complies with ETSI EN 300 220 and FCC part 15
