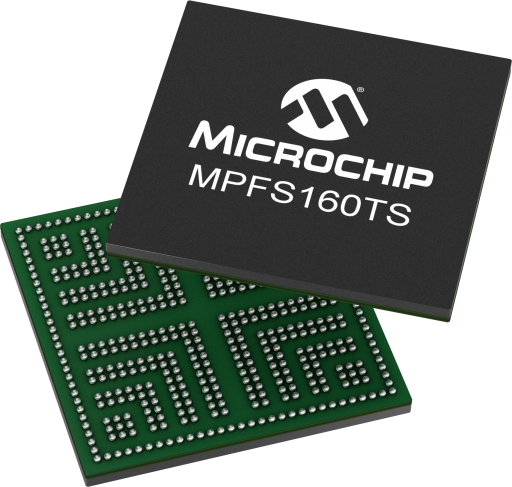

MPFS160TS

Name: MPFS160TS
Brand: Microchip Technology
SKU: 22067
Availability: InStock

Status: In Production

Mid range, low power, with hard RISC-V based

Data Sheet:

PDF

PolarFire® SoC Datasheet

Functional Safety Support

Overview Documentation Tools And Software Design Resources Similar Devices Purchase Related Videos

Overview

Alternate products

Compare Products (4)

LogicElements(K):161
Math Blocks 18x18:498
Fabric uPROM Kbit (kilobit):415
Total RAM KB (kilobyte):11300
PCIe Lanes:2
SERDES_Speed Gbps (gigabits per second):12.7
SERDES lanes:8
PLLs:8
Temp Max °C (degrees Celsius):100
Temp Min °C (degrees Celsius):-40
Max. User I/O:448

161K logic elements (4-input LUT + DFF)
498 Math blocks (18x18 MACC)
8 SerDes lanes of 12.7 Gbps

Microprocessor Subsystem

1x 64-bit RV64IMAC monitor/boot core
4x 64-bit RV64GC Application cores
Fmax of 667 MHz (–40 °C to 100 °C Tj),
3.125 CoreMarks/MHz, 1.714 DMIPS/MHz

MMC 5.1 SD/SDIO
1 Quad SPI flash controller
128 KB eNVM
56KB sNVM

36-bit DDR4/DDR3/LPDDR4/LPDDR3 memory controller with SECDED

2x GigE MACs, USB 2.0 OTG, 5x multi-mode UARTs, 2x SPI, 2x I2C, 2x CAN 2.0 Controllers.
2x PCIe Gen2 End Points/Root Ports

The PolarFire® SoC FPGA is built on the award-winning PolarFire FPGA architecture and is the first SoC FPGA with a deterministic, coherent RISC-V CPU cluster and a deterministic L2 memory subsystem enabling Linux and real-time applications. The family delivers up to 50% lower power than alternative FPGAs and spans from 23k to 461k logic elements and features 12.7G transceivers.

Use your up or down key to switch images.

Documentation

Documents

Online Assets

Filter by Document Type

Search Documentation

Show entries

Search:

Title	Document Category	DS Number
PolarFire® SoC Datasheet Data Sheets DS Number DS00004248	Data Sheets	DS00004248	Download	PolarFire® SoC Datasheet
PolarFire® SoC FPGA Production Devices Errata Errata DS Number DS80001031	Errata	DS80001031	Download	PolarFire® SoC FPGA Production Devices Errata
AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note Application Notes DS Number DS00005165	Application Notes	DS00005165	Link Download	AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note
AN5282: PolarFire SoC Design Flow Application Note Application Notes DS Number DS00005282	Application Notes	DS00005282	Link Download	AN5282: PolarFire SoC Design Flow Application Note
AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note Application Notes DS Number 00004529	Application Notes	00004529	Link Download	AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note
AN4723: PolarFire SoC FPGA Video Kit Picture-in-Picture Application Note Application Notes	Application Notes		Link Download	AN4723: PolarFire SoC FPGA Video Kit Picture-in-Picture Application Note

Previous1 2 3 4 5…8Next

Filter by Document Type

Search Documentation

Show entries

Search:

Title	Document Category		Title
Reliability Report Microchip FPGA and SoC Products	Reliability Reports FPGA	Download	Reliability Report Microchip FPGA and SoC Products Reliability Reports FPGA Download
PolarFire SoC MSS Heavy Ion Test Results	Single-Event Effect Test Reports	Download	PolarFire SoC MSS Heavy Ion Test Results Single-Event Effect Test Reports Download
PolarFire SoC Validation Reports	Validation Reports	Download	PolarFire SoC Validation Reports Validation Reports Download

Filter by Document Type

Search Documentation

Show entries

Search:

Title	Document Category		Title
Supporting documents	Supporting Collateral	Link	Supporting documents Supporting Collateral Link

Tools And Software

Development Environment

Emulator and Debuggers

Demo & Evaluation Boards

Programmers

Tools
Hardware Design Our comprehensive, easy-to-learn and easy-to-adopt development tools allow you to design with our power-efficient FPGAs.
Embedded Design Start designing your embedded system today with our comprehensive design suite for our FPGAs, SoC FPGAs and radiation-tolerant FPGAs.
Mi-V Ecosystem Utilize the comprehensive ecosystem of design resources for PolarFire, RTG4, IGLOO 2 and SmartFusion 2 FPGA-based designs.

Previous1Next

Tools
FLASHPRO5 FlashPro5 offers high performance through USB 2.0 that supports Serial Peripheral Interconnect (SPI) and JTAG interfaces. View Purchasing Options
FLASHPRO6 FlashPro6 offers exceptionally high performance through USB 3.0 that supports Serial Peripheral Interconnect (SPI) client and JTAG interfaces. View Purchasing Options

Previous1Next

Tools
PolarFire® SoC Discovery Kit View Purchasing Options
PolarFire® SoC Video Kit The PolarFire SoC Video Kit is the Industry’s first RISC-V SoC FPGA-based, full-featured embedded vision development platform targeting secure, reliable, and power-efficient vision applications at the edge, including the VectorBlox™ Accelerator SDK and neural network IP, Industrial IoT (IIoT) and automation. View Purchasing Options
PolarFire® SoC FPGA Icicle Kit This low-cost development platform is an excellent solution for evaluating the five-core RISC-V microprocessor subsystem with its innovative Linux® OS support, real-time execution and low-power capabilities, along the rich set of peripherals available on the PolarFire SoC FPGA. View Purchasing Options

Previous1Next

Tools
FLASHPRO5 FlashPro5 offers high performance through USB 2.0 that supports Serial Peripheral Interconnect (SPI) and JTAG interfaces. View Purchasing Options
FLASHPRO6 FlashPro6 offers exceptionally high performance through USB 3.0 that supports Serial Peripheral Interconnect (SPI) client and JTAG interfaces. View Purchasing Options

Previous1Next

Design Resources

Code Examples

Board Design Files

IBIS
MPFS160TS-FCSG536I BSDL File MPFS160TS-FCSG536I BSDL File Download
MPFS160TS-FCVG484I BSDL File MPFS160TS-FCVG484I BSDL File Download
MPFS160TS-FCVG784I BSDL File MPFS160TS-FCVG784I BSDL File Download
PolarFire SoC & PolarFire FPGA IBIS AMI Model PolarFire SoC & PolarFire FPGA IBIS AMI Model Download
PolarFire SoC Dedicated IO IBIS Model (Industrial) PolarFire SoC Dedicated IO IBIS Model (Industrial) Download

Showing 1 to 5 of 8 entries

Previous1 2Next

View All Parametrics

Please visit the full parametric chart. If you still cannot find the chart you are looking for, please complete our Website Feedback Form to notify us of this issue.

Similar Devices

View All Family Devices

No similar devices found.

Purchase

Catalog Parts for MPFS160TS

All parts

Part Number	Lead Count (Pins) 484 784 536	Package Type BGA LFBGA	Temperature Range -40C to +100C	Packing Media TRAY	5K Pricing $184.96 $203.45 $219.10 $199.18 $263.42 $244.60
MPFS160TS-FCVG484I CAD	484	BGA	-40C to +100C	TRAY	$184.96	Available To Order	Please select a different part available in this familyView Samples
PolarFire SoC FPGA, RISC-V CPU, 161KLEs Country of Origin: South Korea {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $372.56 $362.21 $352.42 $347.72 $343.14 $338.69 $330.11 $314.20 Estimated Large-Quantity Pricing 1000-4999 5000 + $191.76 $184.96 Special Pricing Available for Larger Quantities {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $372.56 $362.21 $352.42 $347.72 $343.14 $338.69 $330.11 $314.20 Estimated Large-Quantity Pricing 1000-4999 5000 + $191.76 $184.96 Special Pricing Available for Larger Quantities
MPFS160TS-FCVG784I CAD	784	BGA	-40C to +100C	TRAY	$203.45	Available To Order	Please select a different part available in this familyView Samples
PolarFire SoC FPGA, RISC-V CPU, 161KLEs Country of Origin: South Korea {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $409.81 $398.43 $387.66 $382.49 $377.46 $372.56 $363.13 $345.63 Estimated Large-Quantity Pricing 1000-4999 5000 + $210.93 $203.45 Special Pricing Available for Larger Quantities {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $409.81 $398.43 $387.66 $382.49 $377.46 $372.56 $363.13 $345.63 Estimated Large-Quantity Pricing 1000-4999 5000 + $210.93 $203.45 Special Pricing Available for Larger Quantities
MPFS160TS-1FCVG784I CAD	784	BGA	-40C to +100C	TRAY	$219.10	Available To Order	Please select a different part available in this familyView Samples
PolarFire SoC FPGA, RISC-V CPU, 161KLEs Country of Origin: South Korea {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $441.33 $429.07 $417.47 $411.91 $406.49 $401.21 $391.05 $372.20 Estimated Large-Quantity Pricing 1000-4999 5000 + $227.15 $219.10 Special Pricing Available for Larger Quantities {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $441.33 $429.07 $417.47 $411.91 $406.49 $401.21 $391.05 $372.20 Estimated Large-Quantity Pricing 1000-4999 5000 + $227.15 $219.10 Special Pricing Available for Larger Quantities
MPFS160TS-1FCVG484I CAD	484	BGA	-40C to +100C	TRAY	$199.18	Available To Order	Please select a different part available in this familyView Samples
PolarFire SoC FPGA, RISC-V CPU, 161KLEs Country of Origin: South Korea {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $401.21 $390.07 $379.53 $374.47 $369.54 $364.74 $355.51 $338.37 Estimated Large-Quantity Pricing 1000-4999 5000 + $206.51 $199.18 Special Pricing Available for Larger Quantities {inStockUppercase}: {stockQuantity} Available To Order {OrdInComStock} Place your order today and we can ship on 24-Jul-2025. Larger volumes may require additional time. Order now, estimated to ship on 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $401.21 $390.07 $379.53 $374.47 $369.54 $364.74 $355.51 $338.37 Estimated Large-Quantity Pricing 1000-4999 5000 + $206.51 $199.18 Special Pricing Available for Larger Quantities
MPFS160TS-1FCSG536I CAD	536	LFBGA	-40C to +100C	TRAY	$263.42	In Stock Now	Please select a different part available in this familyView Samples
PolarFire SoC FPGA, RISC-V CPU, 161KLEs Country of Origin: South Korea In Stock Now: 13 {AvailToOrder} {OrdInComStock} Order now, up to 13 estimated to ship on 09-Apr-2025 Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $530.60 $515.86 $501.92 $495.23 $488.71 $482.36 $470.15 $447.49 Estimated Large-Quantity Pricing 1000-4999 5000 + $273.10 $263.42 Special Pricing Available for Larger Quantities In Stock Now: 13 {AvailToOrder} {OrdInComStock} Order now, up to 13 estimated to ship on 09-Apr-2025 Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $530.60 $515.86 $501.92 $495.23 $488.71 $482.36 $470.15 $447.49 Estimated Large-Quantity Pricing 1000-4999 5000 + $273.10 $263.42 Special Pricing Available for Larger Quantities
MPFS160TS-FCSG536I CAD	536	LFBGA	-40C to +100C	TRAY	$244.60	In Stock Now	Please select a different part available in this familyView Samples
PolarFire SoC FPGA, RISC-V CPU, 161KLEs Country of Origin: South Korea In Stock Now: 2 {AvailToOrder} {OrdInComStock} Order now, up to 2 estimated to ship on 09-Apr-2025 Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $492.70 $479.01 $466.07 $459.85 $453.80 $447.91 $436.57 $415.53 Estimated Large-Quantity Pricing 1000-4999 5000 + $253.60 $244.60 Special Pricing Available for Larger Quantities In Stock Now: 2 {AvailToOrder} {OrdInComStock} Order now, up to 2 estimated to ship on 09-Apr-2025 Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by 24-Jul-2025 Standard Pricing: Buy Now Price, Any Quantity 1-4 5-9 10-24 25-49 50-99 100-249 250-499 500 + $492.70 $479.01 $466.07 $459.85 $453.80 $447.91 $436.57 $415.53 Estimated Large-Quantity Pricing 1000-4999 5000 + $253.60 $244.60 Special Pricing Available for Larger Quantities
