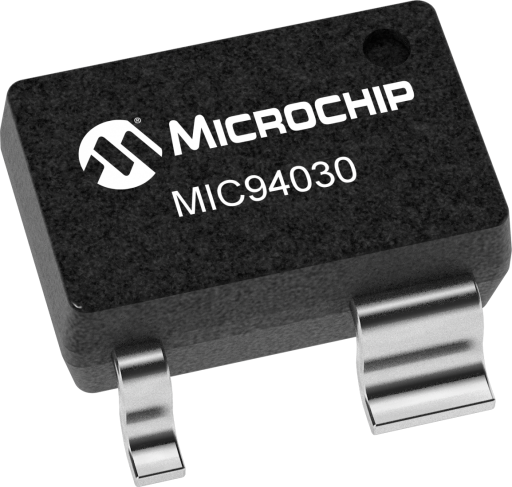

MIC94030

Status: End of Life
4-Terminal P-Channel MOSFET High-Side Switch

Overview

  • 13.5V minimum drain-to-source breakdown
  • 0.75Ω typical on-resistance at 4.5V gate-to-source voltage
  • 0.45Ω typical on-resistance
  • at 10V gate-to-source voltage
  • Operates with 2.7V gate-to-source voltage
  • Separate substrate connection for added control
  • Industry''s smallest surface mount package

The MIC94030 and MIC94031 are 4-terminal silicon gate P-channel MOSFETs that provide low on-resistance in a very small package.

Designed for high-side switch applications where space is critical, the MIC94030/1 exhibits an on-resistance of typically 0.75Ω at 4.5V gate-to-source voltage. The MIC94030/1 also operates with only 2.7V gate-to-source voltage.

The MIC94030 is the basic 4-lead P-channel MOSFET. The MIC94031 is a variation that includes an internal gate pull-up resistor that can reduce the system parts count in many applications.

The 4-terminal SOT-143 package permits a substrate connection separate from the source connection. This 4-terminal configuration improves the θJA (improved heat dissipation) and makes analog switch applications practical.

The small size, low threshold, and low RDS(on) make the MIC94030/1 the ideal choice for PCMCIA card sleep mode or distributed power management applications.
