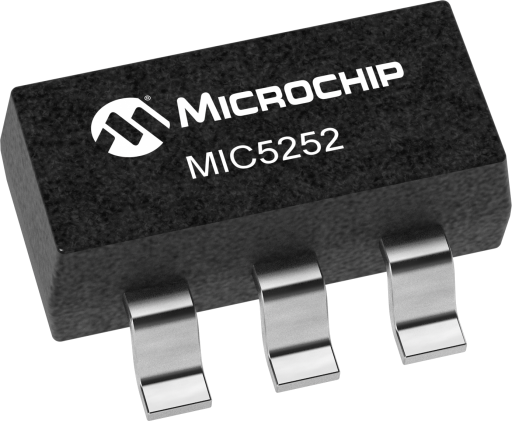

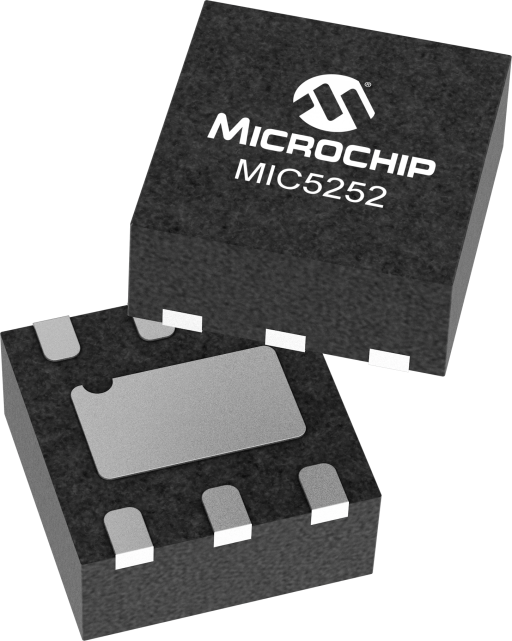

MIC5252 | Microchip Technology

Overview

  • VIN Min (V) V (volt):2.7
  • VIN Max (V) V (volt):6
  • VOUT V (volt):1.8, 2.5, 2.8, 2.85, 3.0, 4.75
  • IOUT #1 Max mA (milliampere):150
  • Rated IOUT Max mA (milliampere):150
  • Quiescent Current µA (microampere):90
  • Voltage Drop Typ (mV):135
  • Accuracy (+/-) %:3
  • Adjustable VOUT:No
  • Reverse Battery:No
  • Bypass Pin:Yes
  • Current Limit:Yes
  • Shutdown EN:Yes
  • Power Good Signal:No
  • Thermal Shutdown:Yes
Read more
  • Input voltage range: 2.7V to 6.0V
  • PSRR equals 50dB at VO + 0.3V
  • Ultra-low output noise: 30µVrms
  • Stability with ceramic output capacitors
  • Ultra-low dropout: 135mV at 150mA
  • 1.0% initial accuracy
  • 2.0% over temperature
  • Low quiescent current: 90µA
  • Tight load and line regulation
  • TTL logic-controlled enable input
  • Zero off-mode current
  • Thermal shutdown and current limit protection
