Overview
- Title:KEELOQ® Encoder Devices
- Operating Voltage (V):2.0 - 3.7
- Function Codes:7
- Transmission Code Length Bits:160
- Code Hoppings Bits:128
- Freq. Range:310-928
- Modulation:ASK/FSK
- Output Power dBm:0/+10
- IO Pins:0
- LEDs:1
- Encryption Key Length:128
- Seed Length:128
- ICSP:Yes
- Programmable 32-bit serial number
- Programmable 32-bit serial number for seed transmissions
- AES-128 block cipher
- Programmable 128-bit crypt key
- 160/192-bit transmission code length
- 32-bit unencrypted portion
- 128-bit encrypted, code hopping portion
- 32-bit authorization check (optional)
- 2.0 to 3.7V operation
- Three switch inputs
- Seven functions available
- One active-low LED drive
- Configurable maximum code word
- Configurable bit rate
- Configurable modulation, supporting FSK and OOK
- Configurable data modulation, supporting PWM and Manchester
- Button inputs have internal pull-up resistor
- 14pin 4.4mm TSSOP Package

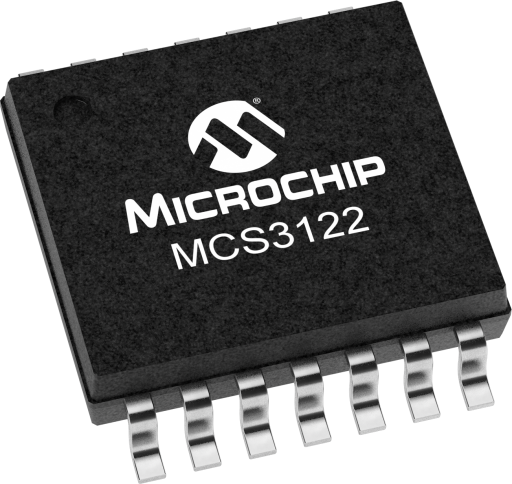

The MCS3122 is an advanced KeeLoq® encoder, designed for secure Remote Keyless Entry (RKE) and secure remote control systems. Typical applications include vehicles and home garage door openers. The MCS3122 delivers a cost effective, yet secure solution requiring very few external components.
