±1°C Accurate, 1.8V Digital Temp. Sensor
Overview
- Channel Type:Local (Single-Channel)
- Typical Accuracy (°C):0.5
- Interface Type:I2C, SMBus
- Resolution (Max) (bits):11
- 1MHz, 2-wire I2C™ Interface
- Specified VDD Range: 1.7V to 3.6V
- Operating Current: 100 µA

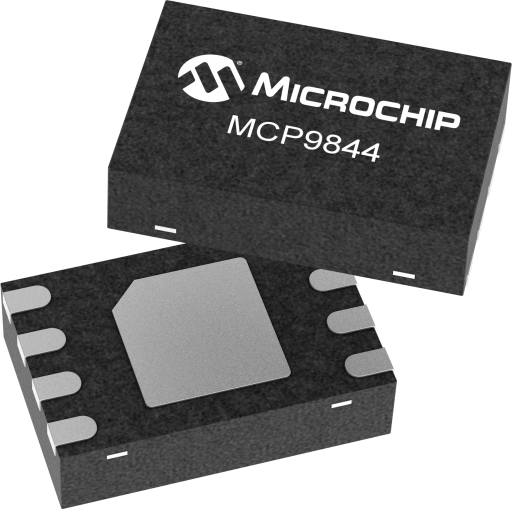

- Available Package: TDFN-8
- Temperature Accuracy: - ±0.2°C/±1°C (typ./max.) +75°C to +95°C- ±0.5°C/±2°C (typ./max.) +40°C to +125°C- ±1°C/±3°C (typ./max.) -20°C to +125°C
Microchip Technology Inc.’s MCP9844 digital temperature sensor converts temperature from -40°C and +125°C to a digital word. This sensor meets JEDEC Specification JC42.4-TSE2004B1 mobile Platform Memory Module Thermal Sensor Component. It provides an accuracy of ±0.2°C/±1°C (typical/maximum) from +75°C to +95°C.
