High Accuracy Low-Power Linear Active Thermistor IC
Overview
- Typical Accuracy (°C):0.5
- Max. Accuracy @ 25°C:1
- Temp Range Min:-40
- Temp Range Max:150
- Vcc Range Min:2.3
- Vcc Range Max:5.5
- Max. Supply Current (µA):12

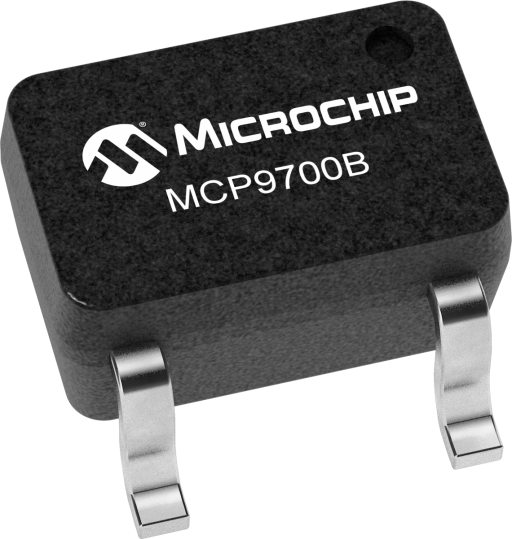

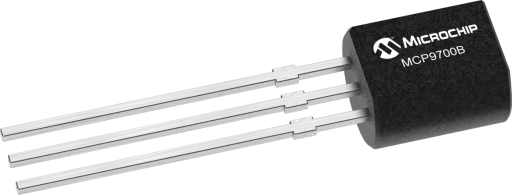

Linear Active Thermistor ICs are sensors whose output voltage is directly proportional to measured temperature. The MCP9700B can accurately measure temperature from -40°C to +150°C. The output of the MCP9700B is calibrated to a slope of 10mV/°C and has a DC offset of 500mV. The offset allows reading negative temperatures without the need for a negative power supply. The MCP9700B is packaged in space saving SC-70 and SOT-23 packages making them ideal in space constrained applications.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board demonstrates how to interface the MCP9700 to a microcontroller. |
