Microcontroller Supervisory Circuit w/ Push Pull Active Low
Overview
- Driver Type:Supervisor
- Min Operating Voltage (V):1
- Max Operating Voltage (V):5.5
- Nominal Reset Voltage Min:2.625
- Nominal Reset Voltage Max:4.725
- Watchdog Timer:No
- Manual Reset:No
- Power Fail:No
- Min Operating Ambient Temperature (°C):-40
- Max Operating Ambient Temperature (°C):85
- Holds microcontroller in reset until supply voltage reaches stable operating voltage
- Resets microcontroller during power loss
- Precision monitoring of 3V, 3.3V and 5V systems
- Active low RESET pin (MCP809) or active high RESET (MCP810)
- Push-pull output
- Holds RESET for 350ms (typical)
- RESET to VDD = 1.0V
- Accuracy of +(-)125mV for 5V systems and +(-)75mV for 3V systems over temperature
- 45uA typical operating current
- Industrial (I): -40C to +85C

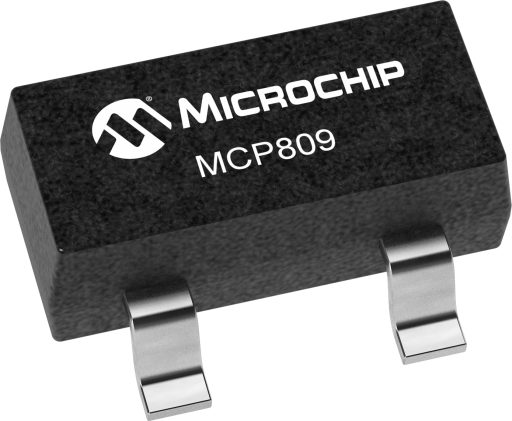

The MCP809 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. MCP809 has a CMOS push-pull output with active low reset and is available in a choice of seven different trip voltages. It operates over the extended industrial temperature range (-40°C/+85°C). MCP809 is available in a SOT23-3 package.
