Single Cell, Li-Ion/Li-Polymer Charge Management Controller
Overview
- Linear Mode:True
- # of cells:1
- Int/Ext FET:Int
- Vin Max (V):6
- Vin Min (V):3.75
- Voltage Regulation Accuracy (%):1
- Temperature Monitor:No
- Charge Safety Timers:No
- Max. Thermal Regulation :Yes
- +/1% Voltage regulation accuracy
- 4.2V Regulated voltage output
- On-chip thermal regulation
- Logic-selectable charge current (85mA or 450mA)
- Only two external ceramic capacitors required to implement complete charging solution

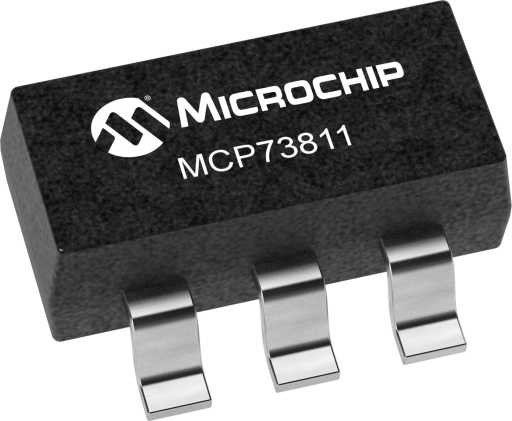

Tiny 500mA charge management controller in SOT23. Includes pass transistor, integrated current sensing and reverse-discharge protection.
