1.2 MHz, 16V Op Amps
Overview
- CMRR Min (dB):100
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):1200
- Iq Max (uA):185
- Input Voltage Noise Density (nV/rt(Hz)):35
- Iq Typical (µA):135
- Operating Voltage Max V (volt):16
- Operating Voltage Min V (volt):3.5
- PM (deg):57
- PSRR Min (dB):102
- # Per Package:4
- Slew Rate (V/µs):0.8
- Vos Max µV (microvolt):3500
- Input Offset Voltage: ±3.5 mV (max)
- Quiescent Current: 135 µA (typical)
- Common Mode Rejection Ratio: 100 dB (typical)
- Power Supply Rejection Ratio: 102 dB (typical)
- Rail-to-Rail Output
- Single-Supply Operation: 3.5V to 16V
- Dual-Supply Operation: ±1.75V to ±8V
- Gain Bandwidth Product: 1.2 MHz (typical)
- Slew Rate: 0.8V/µs (typical)
- Unity Gain Stable
- Extended Temperature Range: -40°C to +125°C

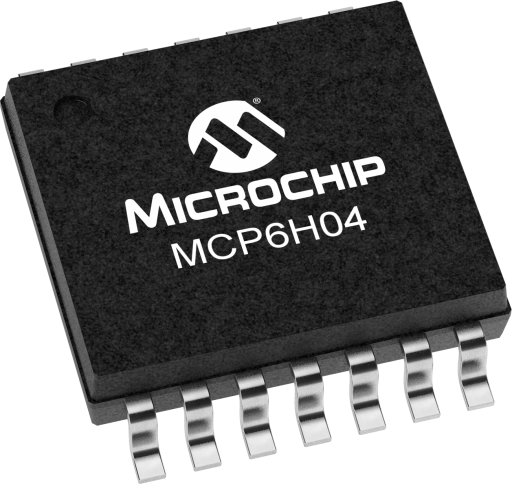

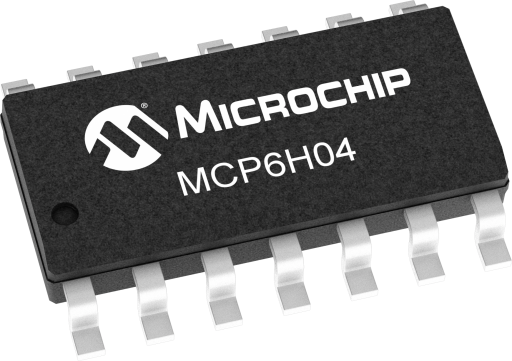

Microchip’s MCP6H04 operational amplifier(op amp) has a wide supply voltage range of 3.5V to 16V and rail-to-rail output operation. This device is unity gain stable and has a gain bandwidth product of 1.2 MHz (typical).
This device operates with a single-supply voltage as high as 16V, while only drawing 135 µA/amplifier (typical) of quiescent current. The MCP6H01/2/4 family is offered in single (MCP6H01), dual (MCP6H02) and quad (MCP6H04) configurations.
All devices are fully specified in extended temperature range from -40°C to +125°C.
