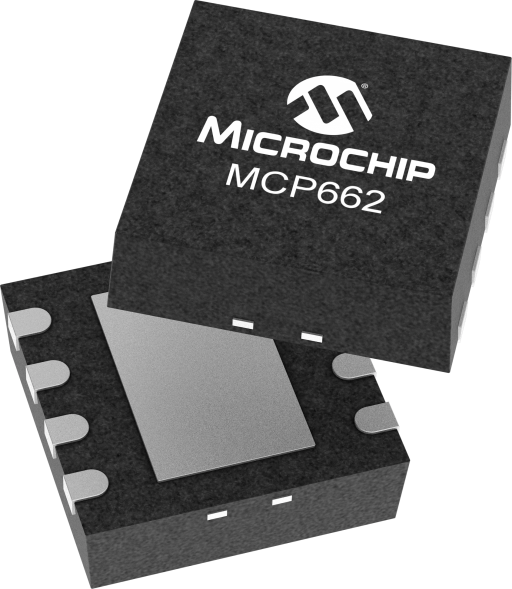

60 MHz, 32 V/µs Rail-to-Rail Output Op Amp
Overview
- CMRR Min (dB):66
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):60000
- Iq Max (uA):9000
- Input Voltage Noise Density (nV/rt(Hz)):6.8
- Iq Typical (µA):6000
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):2.5
- PM (deg):65
- PSRR Min (dB):61
- # Per Package:2
- Slew Rate (V/µs):32
- Vos Max µV (microvolt):8000
- High Gain Bandwidth of 60 MHz
- Short Circuit Current of 90 mA
- Noise: 6.8nV/rtHz
- Rail-to-Rail Output
- Slew Rate: 27 V/us
The MCP66x family of operational amplifiers features high gain bandwidth product, and high output short circuit current. Select devices also offer a Chip Select pin that supports a low power mode of operation. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 Filter Design Made Easy
FilterLab provides the flexibility to select filter types and topologies, specify component tolerances and optimize the design based on your needs. It includes downloadable schematic diagrams of the filter circuit with component values and a complete Bill of Materials (BoM) to accelerate your design.
|
| Tools |
|---|
| This demo board uses the MCP661 in a very basic application for high-speed op amps; a 50Ω line (coax) driver.
|
| The MCP6XXX Amplifier Evaluation Board 2 supports inverting summing amplifiers and non-inverting summing amplifiers |
| The MCP6XXX Amplifier Evaluation Board 3 is designed to support the difference amplifier circuits which are generated by the Mindi™ Amplifier Designer. |
| This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated.
|
