450 nA, 9 kHz Op Amp
Overview
- CMRR Min (dB):60
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):9
- Iq Max (uA):0.65
- Input Voltage Noise Density (nV/rt(Hz)):190
- Iq Typical (µA):0.45
- Operating Voltage Max V (volt):6.0
- Operating Voltage Min V (volt):1.4
- PM (deg):65
- PSRR Min (dB):65
- # Per Package:4
- Slew Rate (V/µs):0.003
- Vos Max µV (microvolt):4500
- Low Quiescent Current: 450 nA (typical)
- Gain Bandwidth Product: 9 kHz (typical)
- Supply Voltage Range: 1.4V to 6.0V
- Rail-to-Rail Input and Output
- Unity Gain Stable
- Slew Rate: 3V/ms (typical)
- Extended Temperature Range: -40°C to +125°C

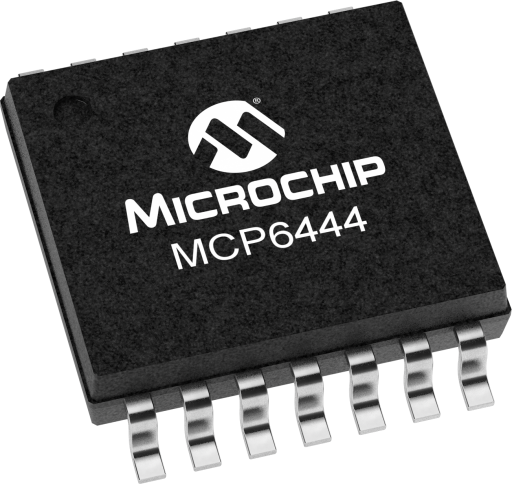

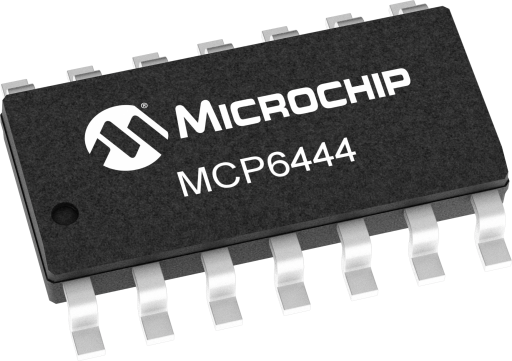

- Available in SOIC and TSSOP
The MCP6444 device is a quad nanopower operational amplifier (op amp), which has low quiescent current (450 nA, typical) and rail-to-rail input and output operation. This op amp is unity gain stable and has a gain bandwidth product of 9 kHz (typical). These devices operate with a single supply voltage as low as 1.4V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6444 op amp is designed with Microchip’s advanced CMOS process and offered in the TSSOP and SOIC packages. All devices are available in the extended temperature range, with a power supply range of 1.4V to 6.0V.
