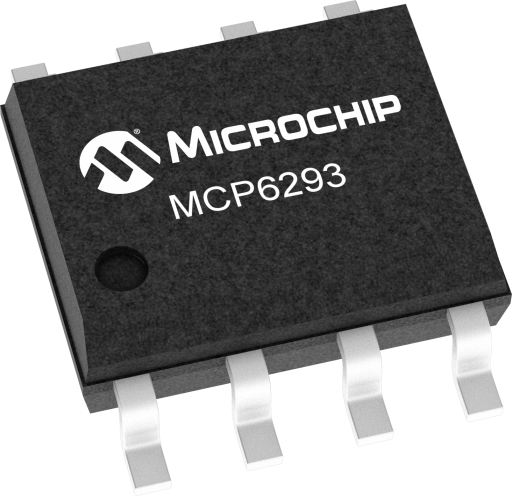

1.0 mA, 10 MHz Rail-to-Rail Op Amp
Overview
- CMRR Min (dB):65
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):10000
- Iq Max (uA):1300
- Input Voltage Noise Density (nV/rt(Hz)):8.7
- Iq Typical (µA):1000
- Operating Voltage Max V (volt):6.0
- Operating Voltage Min V (volt):2.4
- PM (deg):65
- PSRR Min (dB):70
- # Per Package:1
- Slew Rate (V/µs):7
- Vos Max µV (microvolt):3000
- Input Offset Voltage: ±3 mV (max)
- Quiescent Current: 1000 µA (typical)
- Common Mode Rejection Ratio: 65 dB (typical)
- Power Supply Rejection Ratio: 70 dB (typical)
- Supply Voltage Range: 2.4V to 6V
- Gain Bandwidth Product: 10 MHz (typical)
- Slew Rate: 7V/µs (typical)
- Unity Gain Stable
- Extended Temperature Range: -40°C to +125°C
- Rail-to-Rail Input/Output with Chip Select Shutdown
The Microchip Technology Inc. MCP6291/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 10 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.4V, while drawing 1 mA (typical) quiescent current. Additionally, the MCP6291/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300 mV. This family of operational amplifiers is designed with Microchip’s advanced CMOS process. The MCP6293/5 have a Chip Select (CS) input for single/dual op amps. The CS input puts the device in Low-power mode. The MCP6291/1R/2/3/4/5 family operates over the Extended Temperature Range of -40°C to +125°C.
