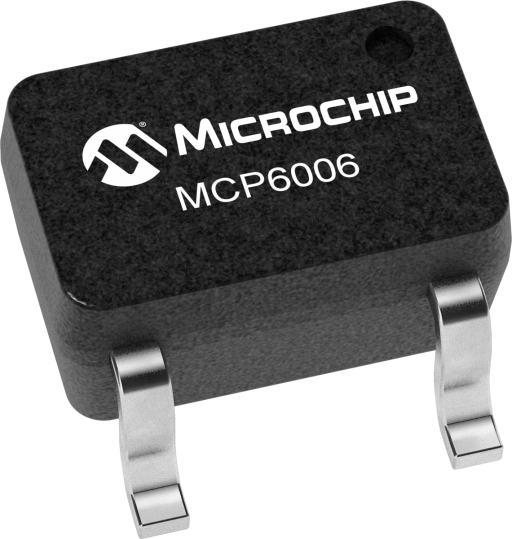

1 MHz Op Amp with EMI Filtering
Overview
- CMRR Min (dB):50
- Enhanced EMI Protection:Yes
- Gain Bandwidth Product kHz (kilohertz):1000
- Iq Max (uA):70
- Input Voltage Noise Density (nV/rt(Hz)):25
- Iq Typical (µA):50
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):1.8
- PM (deg):70
- PSRR Min (dB):80
- # Per Package:1
- Slew Rate (V/µs):1.9
- Vos Max µV (microvolt):1600
- Gain Bandwidth Product: 1 MHz (typical)
- Input Offset Voltage: 1.6 mV (maximum)
- Supply Voltage: 1.8V to 5.5V
- Supply Current: 50 µA (typical)
- Input Bias Current: 1 pA (typical)
- EMIRR at 1.8 GHz: 95 dB (typical)
- Phase Margin: 70° (typical)
- Rail-to-Rail Input/Output
- Temperature Range: -40°C to +125°C
- Available in SOT23 and SC70 packages
- AEC-Q100 Grade 1
The MCP6006/6R/6U/7/9 series of operational amplifiers have low input bias current and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 1 MHz (typical). These devices operate with a single-supply voltage as low as 1.8V, while only drawing 50 µA/amplifier (typical) of quiescent current. All devices feature integrated EMI filtering and are fully specified over the extended temperature range from -40°C to +125°C.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 Filter Design Made Easy
FilterLab provides the flexibility to select filter types and topologies, specify component tolerances and optimize the design based on your needs. It includes downloadable schematic diagrams of the filter circuit with component values and a complete Bill of Materials (BoM) to accelerate your design.
|
| Online power solutions, accelerated
MPLAB Analog Designer (MAD) allows you to choose an existing solution or customize a suggested design. Schematics and component lists are included. View or modify your choice and, with one click, export the design files to MPLAB Mindi Analog Simulator for verification and analysis.
|
