8-Bit Single Output DAC with SPI
Overview
- Resolution:8
- Number of Input Channels:1
- Interface:SPI
- INL Max LSB:0.5
- Output Settling Time (μs):7.8
- Memory Type:Volatile
- Voltage Reference Options:
- Device VDD
- External VREF (buffered or unbuffered)
- Internal Bandgap (1.22V typ)
- Output Gain Options
- Unity (1x)
- 2x
- Power Down Modes
- Disconnects output buffer (High Impedance)
- Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)
- Low Power Consumption
- Normal Operation: Less than 180µA
- Power Down Operation: 650nA (typ)

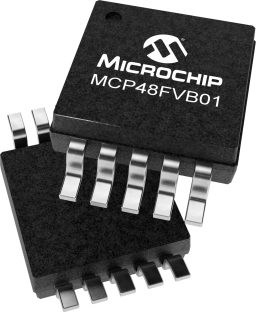

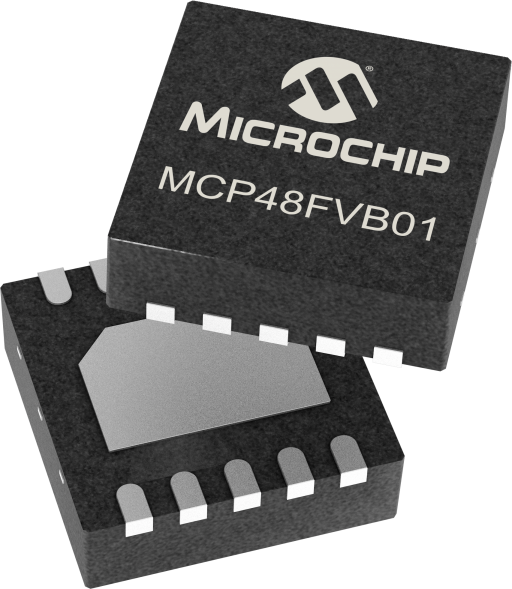

MCP48FVB01 is a single channel 8-bit, voltage output Digital-to-Analog Converter with volatile memory and an SPI compatible serial interface. This device provides four different voltage reference options: device VDD, external VREF (buffered or unbuffered) and internal bandgap. It offers high AC performance, low power consumption and fast settling time, which makes it suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications, and portable instruments.
For different resolutions and number of output channels, please check out our other parts in the MCP48FVBxx family.
