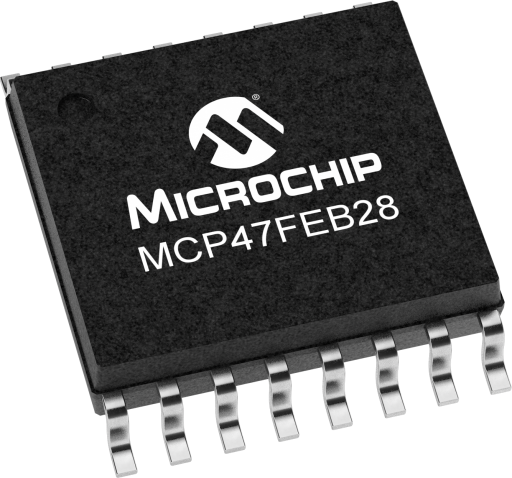

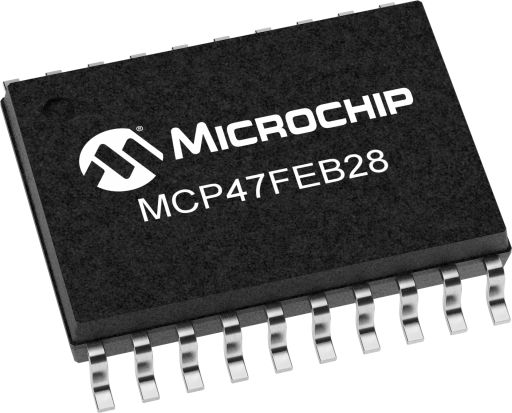

12-Bit Octal Output DAC w/EEPROM and I2C™
Overview
- Resolution:12
- Number of Input Channels:8
- Interface:I²C
- INL Max LSB:6
- Output Settling Time (μs):7.8
- Memory Type:Non-Volatile
- Voltage Reference Options
- Device VDD
- External VREF (buffered or unbuffered)
- Internal Bandgap (1.22V typ)
- Output Gain Options:
- Unity (1x)
- 2x (when not using internal VDD as voltage source)
- Non-Volatile Memory (EEPROM)
- User programmed POR/BOR output setting recall and Device Configuration bits
- Auto Recall of Saved DAC register setting
- Auto Recall of Saved Device Configuration(Voltage Reference, Gain, Power Down)
- Power Down Modes
- Disconnects output buffer (High Impedance)
- Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)
- Low Power Consumption
- Normal Operation: 1.8 mA
- Power Down Operation: 680nA (typ)
- EEPROM write cycle: 2.7mA (max)
- Operating Voltage
- Full Specifications 2.7V to 5.5V
- Reduced Device Specifications 1.8V to 2.7V
MCP47FEB28 is a octal channel, 12-bit, voltage output Digital-to-Analog Converter with EEPROM and an I2C Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (buffered or unbuffered) and internal bandgap. It offers high AC performance, low power consumption and a fast settling time. The device has integrated EEPROM to save DAC settings at power down. It is suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications, and portable instruments.
For different resolutions and number of output channels, please check out our other parts in the MCP47FE family.
We welcome questions, comments and recommendations for improvements to this page - please contact us at: DACwebrequests@microchip.com if you have any; please mention the part number in the email subject header.
