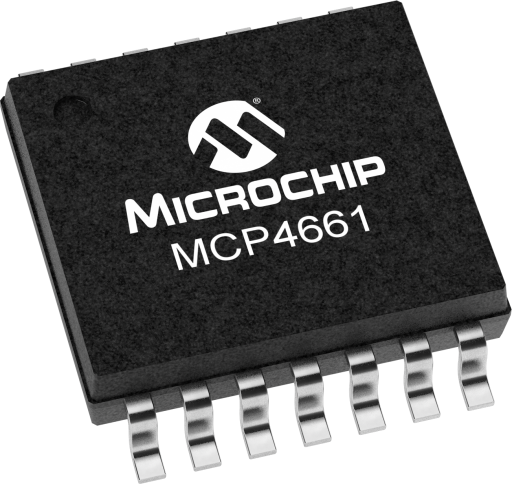

8-Bit Dual Digital POT with NVM and I2C™
Overview
- Resolution (Number of Taps):257
- Resistance (ohms) k:5, 10, 50, 100
- Dual Resistor Network
- Potentiometer or Rheostat configuration options
- 8-bit: 256 Resistors (257 Steps)
- 5kΩ
- 10kΩ
- 50kΩ
- 100kΩ
- Zero-Scale to Full-Scale Wiper operation
- Low Wiper Resistance: 75Ω (typ.)
- Absolute (Rheostat): 50 ppm typical(0°C to 70°C)
- Ratiometric (Potentiometer): 15 ppm typical
- 100 kHz
- 400 kHz
- 3.4 MHz
- Brown-out reset protection (1.5V typical)
- Serial Interface Inactive current (2.5 uA typ.)
- High-Voltage Tolerant Digital Inputs: Up to 12.5V
- 2.7V to 5.5V - Device Characteristics Specified
- 1.8V to 5.5V - Device Operation
- 2 MHz (typ.) for 5.0 kΩ device
- Extended temperature range (-40°C to +125°C)
- AEC-Q100 Grade 1 quarlified
The MCP466X devices are dual channel, non-volatile, 8-bit (257 wiper steps) digital potentiometers with EEPROM and an I2C compatible interface. The MCP466X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP466X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
