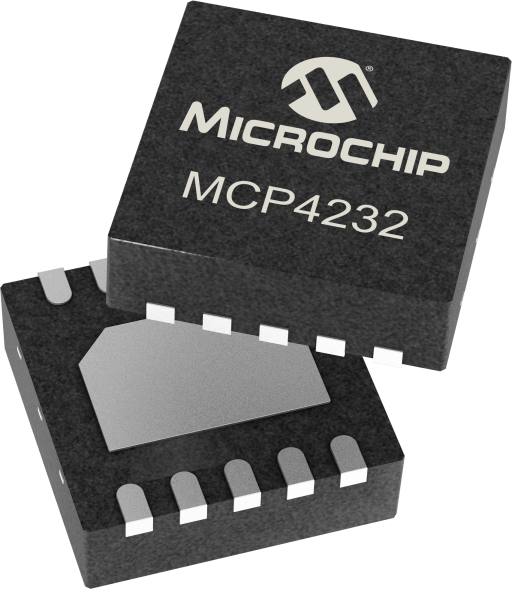

7-Bit Dual Digital POT with SPI
Overview
- Resolution (Number of Taps):129
- Resistance (ohms) k:5, 10, 50, 100
- 7-bit:128 Resistors with Taps to VSS and VDD
- SPI compatible interace
- Automatic Recall of Potentiometer Wiper Settings
- Resistance Values: 5kΩ, 10kΩ, 50kΩ,100kΩ
- Absolute (Rheostat): <100 ppm (typ.)
- Ratiometric (Potentiometer): <10 ppm (typ.)
- Low Wiper Resistance: 100Ω (typ.)
- Low-Power Operation: 1µA Max Static Current
- Wide Operating Voltage: 1.8V to 5.5V
- Extended Temperature Range: -40°C to +125°C
The MCP41/423X devices are volatile, 7-bit (129 wiper steps) digital potentiometers with an SPI compatible interface. The MCP41/42XX family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
We welcome questions, comments and recommendations for improvements to this page - please contact us at: Digipotwebrequests@microchip.com if you have any; please mention the part number in the email subject header.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 This blank Printed Circuit Board allows 8- and 10-pin devices in the following package types to be installed: MSOP-10, MSOP-8 and DIP-10.This board is generic so that any of the listed devices may be installed. Refer to the device data sheet, however, for suitability of device evaluation.As well as the device, other desired passive components (resistors and capacitors) and connection posts may be installed. This allows the board to evaluate a minimum configuration for the device. |
| The MCP42XX PICtail Plus Daughter Board is used to demonstrate the operation of the MCP42XX Digital Potentiometers. The operation of the MCP41XX devices is similar to the MCP42XX devices. |
| The MCP4xxx Digital Potentiometer Daughter Board allows the system designer to quickly evaluate the operation of Microchip Technology’s MCP42XXX and MCP402X Digital Potentiometers.
|
| The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages. |
