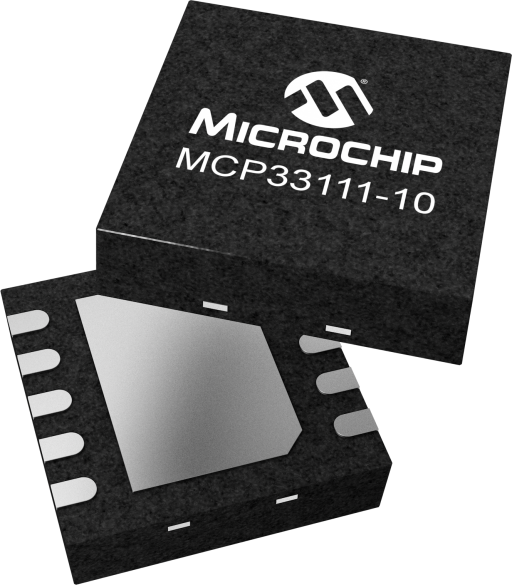

12-Bit, 1MSPS, Single Channel ADC
Overview
Alternate products
Compare Products
(2)
- Resolution:12
- Sample Rate kSPS Max:1000
- Input Channels Differential:0
- SNRtyp:73.8
- SFDR typ:97.4
- ENOB:12
- INL Typ LSB:0.12
- 12-bit resolution
- Single-Ended input
- SPI interface
- ±0.06 LSB Typical DNL
- ±0.12 LSB Typical INL
- 1 Msps sample rate
- -40 to +125°C temperature range
- Recommended for Automotive Designs (Q100)
The MCP33111-10 12-bit Analog-to-Digital Converter (ADC) features a single-ended input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33111-10 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 12-bit ADC capability to be added to any PIC® microcontroller. The MCP33111-10 features 1M samples/second, 1 input channel, low power consumption (0.8µA typical standby, 1.6mA typical active), and is available in 10 pin MSOP and 10 pin TDFN. Applications for the MCP33111-10 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power supply applications.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP331X1D-XX Evaluation Board (ADM00873) can be used to evaluate the performance of the MCP331x1x-xx SAR ADC device family.
|
