12-Bit, 100kSPS, Dual Channel ADC
Overview
- Resolution:12
- Sample Rate kSPS Max:100
- Input Channels Differential:1
- SFDR typ:86
- ENOB:11.8
- INL Typ LSB:0.75
- 12-bit resolution
- Dual single-ended inputs
- SPI interface
- ±1 LSB DNL
- ±1 LSB INL
- 100 ksps sample
- -40 to +85°C temperature range
- AEC-Q100 Grade 3

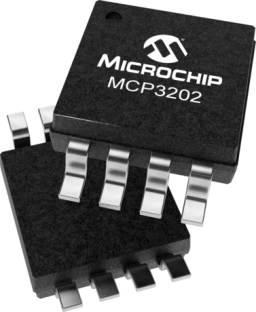

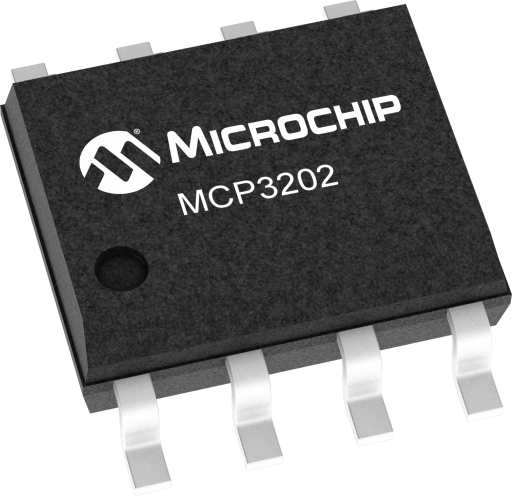

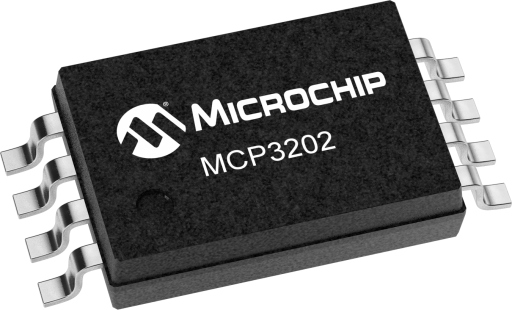

The MCP3202 12-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3202 features a successive approximation register (SAR) architecture and an industry-standard SPI™ serial interface, allowing 12-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3202 features 100k samples/second, 2 input channels, low power consumption (5nA typical standby, 550 µA max. active), and is available in 8-pin PDIP, SOIC and TSSOP packages. Applications for the MCP3202 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
3rd Party Tools
| Tools |
|---|
 This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated.
|
| Tools |
|---|
| Balancer 2 Click is an overvoltage protection device for a 2-series cell lithium-ion battery. Click contains two separate overvoltage battery detection circuits and automatic cell imbalance correction. It can be used for various applications, power tools, portable equipment, and instrumentation, to energy storage systems (ESS), while providing the output voltage at the same time. By utilizing an externally connected power supply, it can charge 2-cell Li-Ion batteries.
The Click board™ is supported by the mikroSDK compliant library, which includes functions that simplify software development. The Click board™ comes as a fully tested product, ready to be used on a system equipped with mikroBUS™. |
