Overview
- Max. Bus Frequency [kBits/s]:10000
- Operating Voltage [V] Max:5.5
- Operating Voltage [V] Min:1.8
- TempRange [°C] Max:125
- TempRange [°C] Min:-40
- I/O pins default to input
- 5.5V tolerant
- 25 mA sink
- 200 mA total
- Low standby current as low as 1 µA
- High-speed SPI interface at 10 MHz
- Configurable interrupt output pins: Configurable as active-high, active-low or open-drain
- Configurable interrupt source: Interrupt-on-change from configured defaults or pin change
- Polarity inversion register to configure the polarity of the input port data
- External reset input

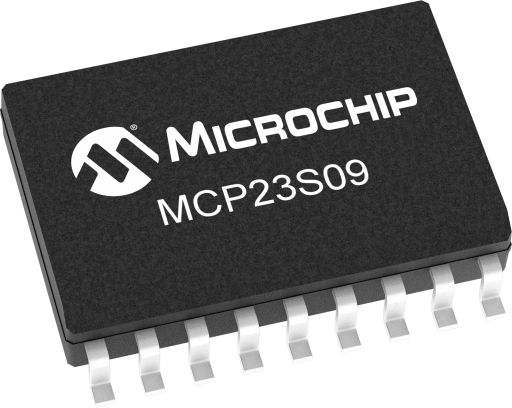

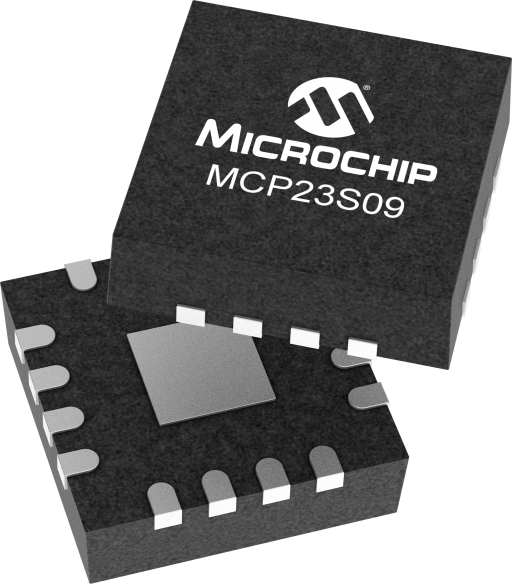

MCP23S09 is an 8-bit I/O expander with SPI interface operating at 10 MHz. The MCP23S09 is available in 18-pin PDIP (300 mil), 18-pin SOIC (300 mil) and 16-pin 3x3mm QFN package
