USB 2.0 to I2C/UART Protocol Converter with GPIO
Overview
Alternate products
Compare Products
(2)
- Upstream Port:USB 2.0
- USB Speed:Full Speed
- Down stream Ports:I2C/SMBus, UART
- MCU Interface:I2C/SMBus, UART
- Tx Buffer Size:64
- Rx Buffer Size:64
- GPIOs:4
- OpVoltage:3.0 to 5.5
- ROM I/F:No
- UART:No
- CompactFlash:No
- Secure Digita lMMcards:0
- SD MM CS DIO Ports:0
- Memory Stick:No
- xD Picture Card:No
- Logical Unit Num:0
- Temp Range Min:-40
- Temp Range Max:85
- • Supports full-speed USB (12 Mb/s)
- • Communications and configuration
- • Human Interface Device (HID) for I²C™, chip control and configuration
- • 64-byte Transmit
- • 64-byte Receive
- • 64 byte buffer to handle data throughput at any I²C™ baud rate
- • Fully configurable VID and PID assignments, and string descriptors
- • Bus-powered or self-powered
- • USB 2.0 Compliant
- • 4 kV Human Body Model (HBM)

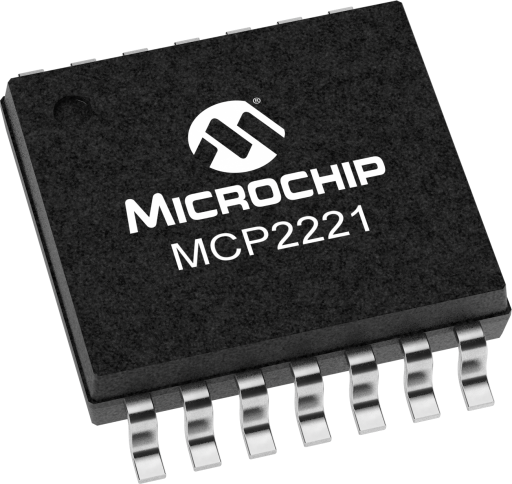

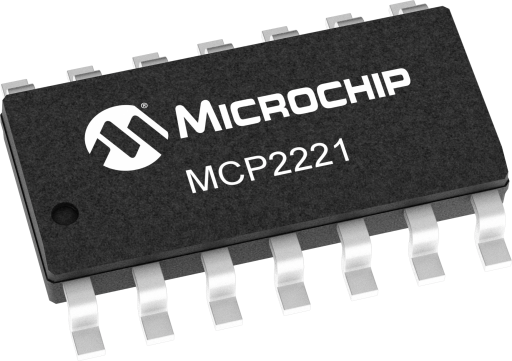

The MCP2221 is a USB-to-UART/I2C serial converter which enables USB connectivity in applications that have a UART and I²C interfaces. The device reduces external components by integrating the USB termination resistors and the oscillator needed for USB operation. The MCP2221 also has four GP pins providing miscellaneous functionalities (GPIO, USBCFG, SSPND, Clock Output, ADC, DAC, interrupt detector).
Please see our MikroElektronika click board! http://www.mikroe.com/click/usb-i2c
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 Microchip has developed the Residential Solar Breaker Reference Design as a high reliability example reference breaker solution for single phase residential solar installations. It is less common for suppliers to be able to source their own breaker solutions, and this reference design is seen as a first step in supporting this capability. Breakers are important from an operational perspective as solar Inverters need to be able to be to connect/disconnect the inverter from the grid in case of fluctuations, as well as to allow for removal of the inverter for inspection and maintenance purposes. Additionally, the Reference Design provides for on-board energy monitoring, that can be used to provide more granular data on energy generation of the system vs. the energy consumption requirements.
|
| The MCP2221 I2C Demonstration Board allows the user to communicate through a PC application to I2C slave devices by using the MCP2221 device as USB-to-I2C Master converter (bridge).
|
| The MCP2221A Breakout Module is designed to demonstrate the device as a USB-to-UART/I2C/SMBus protocol converter solution. The MCP2221A Breakout Module can also be used together with a UART-based and/or I2C/SMBus system and helps to ease the implementation of adding USB capability to a system.
|
