USB 2.0 to UART Protocol Converter with GPIO
Overview
- Upstream Port:USB 2.0
- USB Speed:Full Speed
- Down stream Ports:UART
- MCU Interface:UART
- Tx Buffer Size:128
- Rx Buffer Size:128
- GPIOs:8
- OpVoltage:3.0 to 5.5
- MGMT I/F:No
- ROM I/F:No
- UART:Yes
- CompactFlash:No
- Memory Stick:No
- xD Picture Card:No
- Temp Range Min:-40
- Temp Range Max:85
- • Supports Full-Speed USB (12 Mb/s)
- • Class 02h - CDC: USB-to-UART communications and I/O control
- • Class 03h - HID: I/O control, EEPROM access, and initial configuration
- • 64 byte transmit
- • 64 byte receive
- • Fully configurable VID and PID assignments, and string descriptors
- • Bus Powered or self powered USB Driver and Software Support
- • Windows XP(SP2 and later)/Vista/7
- • Configuration utility for initial configuration
- • Support baud rates: 300 - 1000k (baud)
- • Hardware flow control
- • UART signal polarity option General Purpose Input/Output (GPIO) Pins
- • Eight (8) general purpose I/O pins
- • 256 bytes of user EEPROM
- • USB activity LED outputs (TxLED and RxLED)
- • SSPND output pin
- • ULOAD output pin (indicates if requested current was allowed)
- • Operating voltage: 3.0 - 5.5 (V)
- • Oscillator input: 12 MHz
- • ESD protection > 4kV HBM
- • Industrial (I) Operating Temperature: -40°C to +85°C

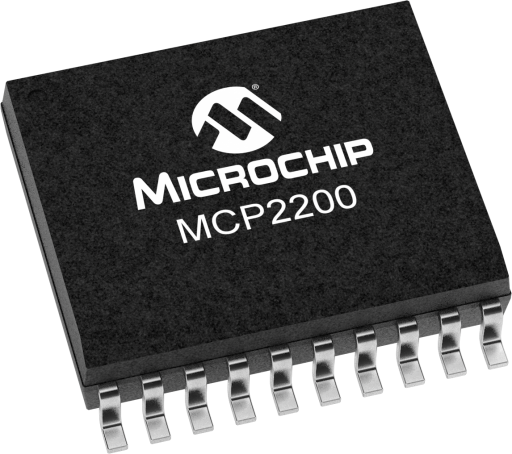

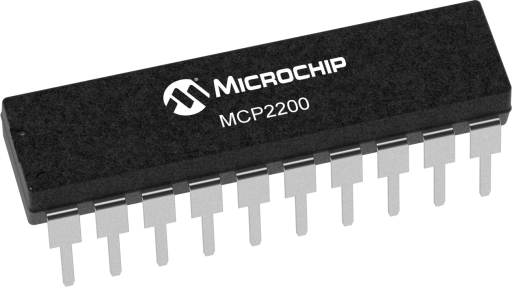

The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in application that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256-bytes of
integrated user EEPROM.
The MCP2200 has eight general purpose input / output pins. Four of the pins have alternate functions to indicate USB and communication status.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The board demonstrates the MCP2200 USB to UART in an RS232 configuration. Additionally, the supplied software can be used to configure special features of the device. |
| The MCP2200 USB to UART with Isolation Demo Board is a USB to UART development and evaluation board for the MCP2200 device.
|
| The MCP2200 Breakout Module is a development and evaluation platform for the USB-to-UART serial converter MCP2200 device. The module is comprised of a single DIP form-factor board.
|
