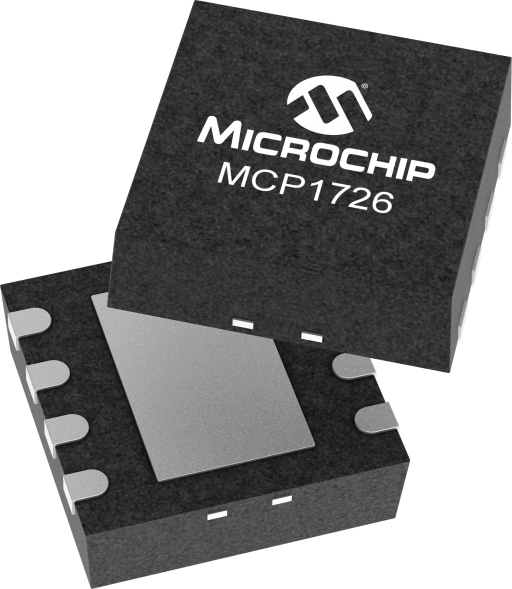

1A Low Voltage Low lq LDO
Overview
- VIN Min (V) V (volt):2.3
- VIN Max (V) V (volt):6
- VOUT V (volt):0.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0
- IOUT #1 Max mA (milliampere):1000
- Rated IOUT Max mA (milliampere):1000
- Quiescent Current µA (microampere):140
- Voltage Drop Typ (mV):220
- Accuracy (+/-) %:2.5
- Adjustable VOUT:Yes
- Reverse Battery:No
- Bypass Pin:No
- Current Limit:Yes
- Shutdown EN:Yes
- Power Good Signal:Yes
- Thermal Shutdown:Yes
- Up to 1A output load current
- Low dropout voltage 220 mV typical
- Output voltage from 0.8V to 5.0V, both fixed and adjustable
- Stable with 1.0µF ceramic output cap
- Power good output with adjustable delay
- Low supply current 140 µA typical
- High PSRR: 54 dB at 100 kHz
- Low shutdown current 0.001 µA typical
- DFN-8 3x3 and SO-8 Pb-free packages
The MCP1726 is a 1A, ceramic output cap stable, low output voltage Low Dropout Regulator (LDO) with shutdown and user-programmable delay power good functions. It is the ONLY 1A LDO on the market that incorporates shutdown, power good, and programmable power good delay features on a single device.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP1726 1A LDO Evaluation Board features Microchip Technology’s 1A, Low Quiescent Current LDO Regulator in two circuits. |
