30V Non-Synchronous Buck Regulator
Overview
- Max Duty Cycle (%):95
- Input Voltage Range Max V (volt):30
- Input Voltage Range Min V (volt):4
- # of Outputs:1
- Output Current:600
- Driver Type:Step Down (Buck)
- Quiescent Current µA (microampere):2
- Synchronous Rectifier:No
- Temp Range Max °C (degrees Celsius):85
- Temp Range Min °C (degrees Celsius):-40
- VOUT Max V (volt):15
- Vfb V (volt):0.8
- VOUT Min V (volt):2
- Vref (V):
- Up to 96% Typical Efficiency
- Input Voltage Range: 4 to 30
- Output Voltage Range: 2.0V to 15V
- 2% Output Voltage Accuracy
- Integrated N-Channel Buck Switch
- 600 mA Output Current
- 500 kHz Fixed Frequency
- Adjustable Output Voltage
- Low Device Shutdown Current
- Peak Current Mode Control
- Internal Compensation
- Stable with Ceramic Capacitors
- Internal Soft-Start
- Cycle by Cycle Peak Current Limit
- Overtemperature Protection
- SOT-23-6

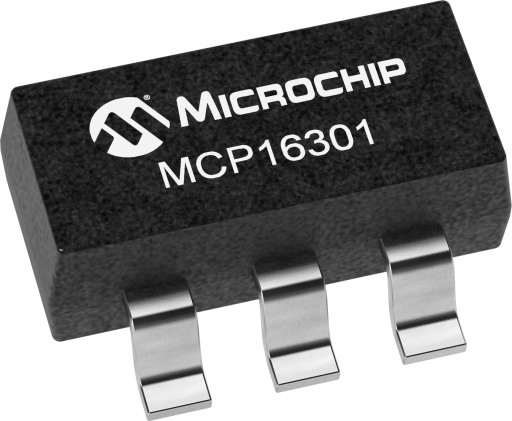

The MCP16301 is a highly integrated, high-efficiency, fixed frequency, step-down DC-DC converter in a popular 6-pin SOT-23 package that operates from input voltage sources up to 30V. Integrated features include a high side switch, fixed frequency Peak Current Mode Control, internal compensation, peak current limit and overtemperature protection. Minimal external components are necessary to develop a complete step-down DC-DC converter power supply.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
Library and Firmware
| Tools |
|---|
 Online power solutions, accelerated
MPLAB Analog Designer (MAD) allows you to choose an existing solution or customize a suggested design. Schematics and component lists are included. View or modify your choice and, with one click, export the design files to MPLAB Mindi Analog Simulator for verification and analysis.
|
| Tools |
|---|
| The MCP16301 High-Voltage Single-Inductor Cuk LED Driver Demo Board was developed to demonstrate how the MCP16301 device operates as a single-inductor Cuk LED driving topology over a wide input voltage and load range.
|
| The MCP16301 5V/600mA Low Noise Evaluation Board is used to demonstrate a high voltage input DC-DC converter design, which can deliver high efficiency, while minimizing high-frequency switching noise.
|
