750kHz 500mA Synchronous PFM/PWM Buck Regulator w/Frequency Synchronization
Overview
- Regulator Type:Step Down (Buck)
- Supported Output:0
- Minimum Input Voltage (V):0
- Maximum Input Voltage (V):0
- Output Current (mA) Max:500
- Maximum Frequency (kHz):0
- Vref (V):0
- Duty Cycle Min (%):0
- Duty Cycle Max (%):100
- Switching Frequency (kHz) kHz (kilohertz):750
- Input Voltage Range Min:2.7
- Input Voltage Range Max:5.5
- Output Current:500
- Temp Range Min °C (degrees Celsius):-40
- Temp Range Max °C (degrees Celsius):85
- Vout Min (V):0.9
- Quiescent Current (mA) typ:0.119
- Light Load Efficiency Mode:Yes
- Switch current (A) typ:0
- Automotive Rated:No
- Automotive Qualified:Yes
- SHUTDOWN Current (µA) (Typ):0.05
- # of Outputs:1
- Vfb V (volt):0.8
- Synchronous Rectifier:Yes
- 3 operating modes (PWM, PFM, LDO) with automatic switching between modes
- Shutdown mode to minimize current drain during stand-bye conditions
- Oscillator Synchronization to 1.0MHz PWM mode
- Integrated Buck and Synchronous switches
- Complete ceramic capacitor solution
- Integrated UVLO, Soft-start, and Over temperature protection
- Short circuit protection
- -40°C to +85°C operation

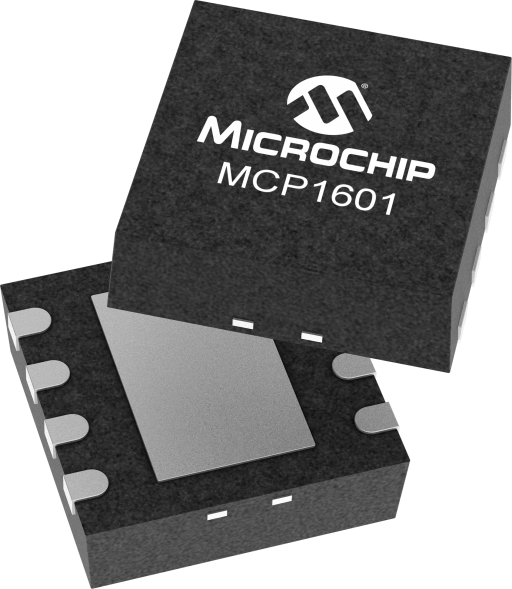

The MCP1601 is a synchronous Buck (step-down) switching regulator that can continuously supply 500mA of load current. This DC/DC converter can provide output voltages of 0.9V to Vin with an operating efficiency that can exceed 92%. Although ideally suited for a single Li-Ion, or 2 to 3 cell NiCd, NiMH, or alkaline battery operation, the input range of 2.7V to 5.5V is also useful for converting bus voltages to standard system requirements.
