10/100 Base-T/TX Ethernet Transceiver with RMII Interface
Overview
- Automotive:No
- DownstreamPorts:1
- Energy Efficient Ethernet:No
- EtherCAT:No
- Port Speed:10/100Mbps
- Fiber Support:No
- HP Auto MDIX:Yes
- On-Chip Termination:No
- InterfaceUpStream:RMII
- Internal Regulator:Yes
- LinkMDCableDiag:No
- MACsec:No
- Supply Voltages:3.3
- SyncE:No
- Temperature Range Max:85
- Temperature Range Min:-40
- Digital I/O Voltage: 1.8/3.3
- WakeonLAN:No
- IEEE 1588 v2:No
- Applications:
- High-definition TV (HDTVs)
- Set-top Boxes (STBs)
- Digital Video Recorders (DVRs)
- Personal Video Recorders (PVRs)
- Network Printers and Servers
- Gaming Consoles
- Telecommunications
- POS Terminals
- Industrial

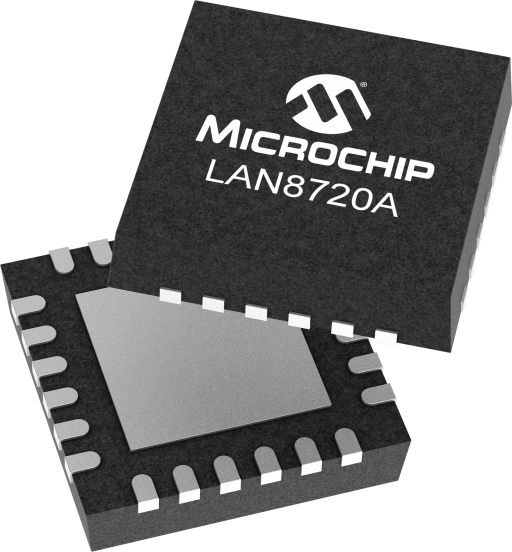

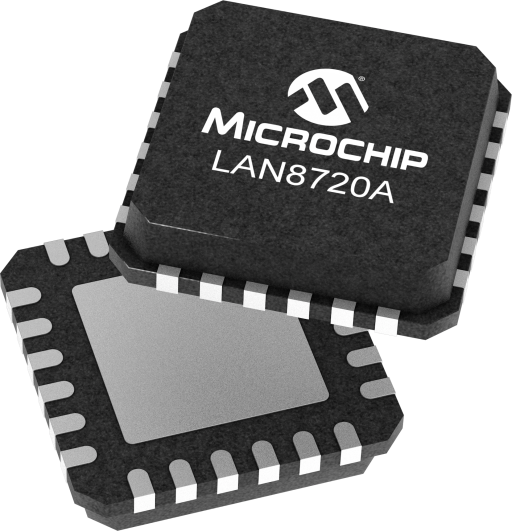

Microchip's LAN8720A/LAN8720Ai are high-performance, small-footprint, low-power 10BASE-T/100BASE-TX transceivers specifically designed for today's consumer electronics, industrial and enterprise applications. The LAN8720A/LAN8720Ai are the industry's smallest footprint solutions with up to 40% lower power consumption than existing Microchip transceivers. The LAN8720A/LAN8720Ai have an integrated voltage regulator and ESD protection components to help reduce Bill of Material (BOM) costs.
The LAN8720A/LAN8720Ai connect via an RMII interface. These devices support HP Auto-MDIX†, employ Microchip's proprietary flexPWR® technology and are available in both extended commercial (0°C to 85°C) and industrial (-40°C to 85°C) temperature range options.
†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 Microchip's LAN8720A PHY Daughter Board is populated with high-performance, small-footprint, low-power 10BASE-T/100BASE-TX Ethernet LAN8720A PHY.
|
