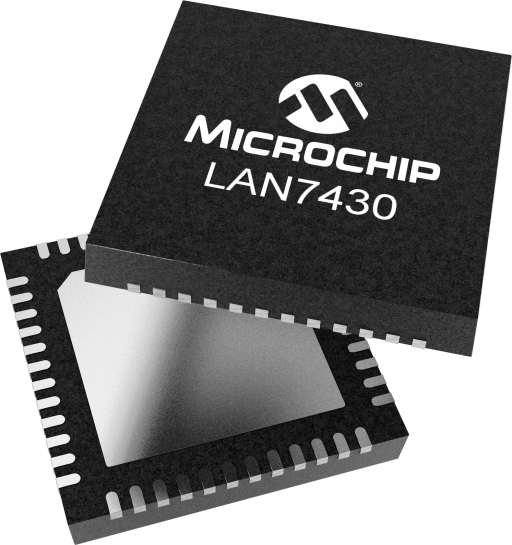

LAN7430 | Microchip Technology

Overview

Alternate products
Compare Products (2)
  • DownstreamPorts:1x Ethernet
  • Downstream USB Ports:0
  • Port Speed:10/100/1000Mbps
  • InterfaceUpStream:PCIe 3.1 at 2.5GT/s
  • Interrupt Pin:No
  • Net Detach:No
  • OpVoltage:3.3
  • Temperature Range Max:85
  • Temperature Range Min:-40
Read more
    Single-chip, PCIe 3.1 @ 2.5GT/s to 10/100/1000 Ethernet controller
  • PCIe Low Power Sub State LPSS L1.1 (snooze) & L1.2 (off)
  • Requires only a single 25MHz crystal or single ended clock
  • 9K jumbo frames are supported
  • Internal OTP memory to remove the need for external EEPROM
    Integrated 10/100/1000 Physical Layer
  • Fully supports IEEE 802.3/802.3u/802.3ab standards
  • IEEE 802.3az-2010 - Energy Efficient Ethernet (EEE)
  • Cable diagnostics including cable length measurement
    IEEE 1588-2008 Precision Time Protocol
  • IEEE 1588-2008 E2E and P2P one and two step supported
  • IEEE 1588-2008 Programmable Time Compare output (Eg: 1PPS)
    Comprehensive Driver Support
  • Windows OneCore with WHQL Certification
  • Linux driver in mainline kernel
  • QNX Support Package
