HV2605 | Microchip Technology

Overview

  • Interface:Serial
  • Configuration:16-SPST
  • Supply Voltage Vpp - Vnn (V):200
  • Analog Signal Voltage (V):180
  • Switch Current (A):±2
  • Switch Resistance typ (Ω):16
  • Output Bleed Resistors:No

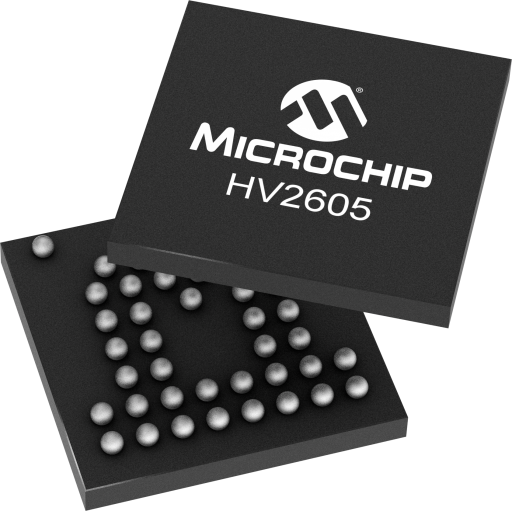

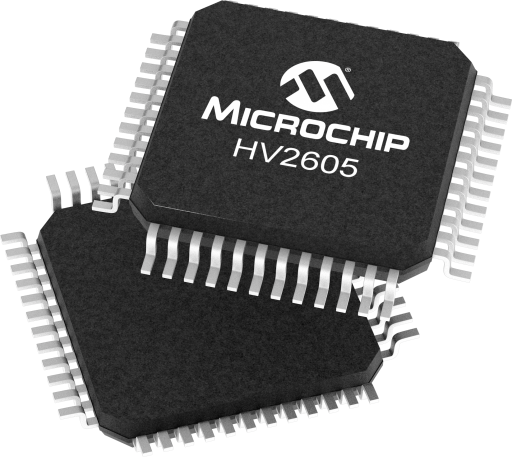

  • Package:TQFP-48, Bumped Die
  • Notes:low harmonic distortion
Read more
  • HVCMOS technology for high performance
  • 16-channel high voltage analog switch
  • 3.3V input logic level compatible
  • 20MHz data shift clock frequency
  • Very low quiescent power dissipation (-10µA)
  • Low parasitic capacitance
  • DC to 50MHz small signal frequency response
  • -60dB typical off-isolation at 5.0MHz
  • CMOS logic circuitry for low power
  • Low harmonic distortion
  • Cascadable serial data register with latches
  • Flexible operating supply voltages
