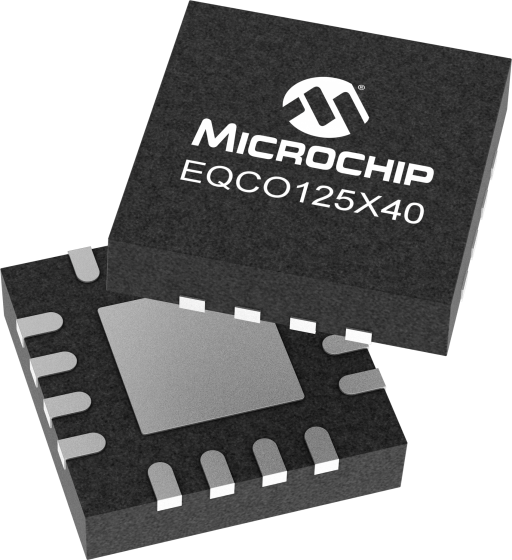

The EQCO125X40 is a CoaXPress 2.0 Transmitter/Receiver with integrated equalizer, CDR (reclocker) and Cable Driver. It is designed to transmit/receive signals on a single cable or PCB trace pair. In one direction an 8b/10b coded downlink signal is transmitted/received between 1.25 Gbps and 12.5 Gbps. In the opposite direction a lower speed 8b/10b coded uplink signal is transmitted/received at 20.833 Mbps or 41.666 Mbps. The EQCO125X40 can be used as a CoaXPress transmitter inside a camera, as a CoaXPress receiver inside a frame grabber and as a CoaXPress repeater inside an active coax cable or link.

To compare this product to other Microchip CoaXPress 2.0 offerings, please see the CoaXPress 2.0 Product Comparison table.
